Documente Tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
TE ConnectivityNumar contacte
6
Product Type
PCB Terminal Block
Pitch
2.54mm
Number of Rows
1
Current
10A
Minimum Wire Size mm²
0.05mm²
Housing Material
Polyamide
Subtip conector
Male
Maximum Wire Size mm²
1.3mm²
Minimum Wire Size AWG
16AWG
Maximum Wire Size AWG
30AWG
Pozitionare
Straight
Culoare
Green
Tensiune
150V
Adancime
10mm
Lungime
15.7mm
Standards/Approvals
No
Latime
6.5mm
Series
Buchanan
Detalii Produs

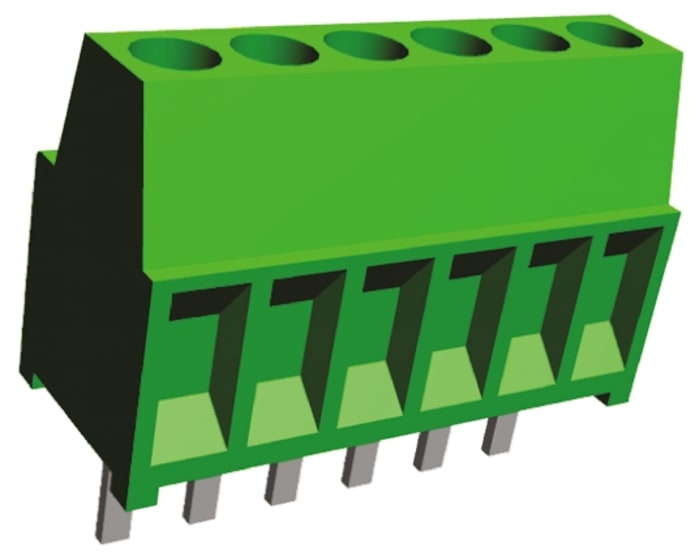

TERMI-BLOK 2.54mm PCB Terminal Block connectors with a side wire entry and green polyamide 6.6 GF housings. These PCB screw Terminal Block connectors have M1.6 nickel plated brass screw Terminals, tin plated contacts and accept a wire size range of 0.05 to 1.40mm2 (30-16 AWG).
UL 94V-0
Inspiră. Proiectează. Colaborează
ÎNSCRIE-TE GRATIS
Fara taxe ascunse!
Informatii despre stoc temporar indisponibile
€ 105,75
€ 4,23 Each (Supplied in a Box) (fara TVA)
€ 127,96
€ 5,12 Each (Supplied in a Box) (cu TVA)
Impachetare pentru productie (Cutie)
25
€ 105,75
€ 4,23 Each (Supplied in a Box) (fara TVA)
€ 127,96
€ 5,12 Each (Supplied in a Box) (cu TVA)
Informatii despre stoc temporar indisponibile
Impachetare pentru productie (Cutie)
25
| Cantitate | Pret unitar |
|---|---|
| 25 - 74 | € 4,23 |
| 75 - 199 | € 4,09 |
| 200 - 399 | € 3,93 |
| 400+ | € 3,79 |
