Documente Tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
TDK-LambdaProduct Type
DC/DC Converter
Output Voltage 1
5V dc
Maximum Input Voltage
75V dc
Minimum Input Voltage
18V dc
Output Current 1
4A
Montare
PCB
Input Ratio
4:1
MTBF
1976000h
Numar iesiri
1
Ripple and Noise
75mV
Tensiune iesire
±10 %
Isolation Voltage
1.6kV
Number of Pins
7
Tip pachet
DIP
Tensiune iesire maxima
20W
Adancime
10.2mm
Lungime
50.8mm
Greutate
48g
Standards/Approvals
No
Latime
40.6mm
Series
PXE
Efficiency
0.8%
Temperatura minima de lucru
-40°C
Temperatura maxima de lucru
85°C
Tara de origine
Taiwan, Province Of China
Detalii Produs

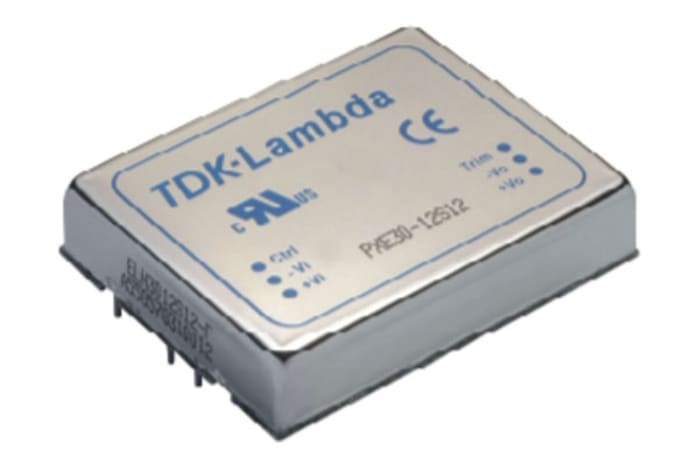

The TDK-Lambda PXE series housed in a metal case for six sided shielding, these 10 to 30W 2"" x 1.6"" footprint converters cover the commonly used nominal input voltages of 12V, 24V or 48V with either 2:1 or 4:1 versions. Both single (1.5V to 15V) and dual output (5V, 12V or 15V) models are available with a choice of positive or negative remote on/off and optional adjustment trim pin.
Inspiră. Proiectează. Colaborează
ÎNSCRIE-TE GRATIS
Fara taxe ascunse!
Informatii despre stoc temporar indisponibile
€ 812,06
€ 812,06 1 Tube of 10 (fara TVA)
€ 982,59
€ 982,59 1 Tube of 10 (cu TVA)
1
€ 812,06
€ 812,06 1 Tube of 10 (fara TVA)
€ 982,59
€ 982,59 1 Tube of 10 (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 812,06 |
| 5 - 9 | € 772,82 |
| 10 - 24 | € 741,72 |
| 25 - 49 | € 711,08 |
| 50+ | € 680,90 |
