Specificatii
Marca
RS ProProduct Type
On-Off Temperature Controller
Tip iesire
Solid State Relay
Number of Inputs
1
Numar iesiri
2
Maximum Current
8A
Temperatura maxima de lucru
50°C
Temperatura minima de lucru
0°C
Tip terminal
Screw
Control Type
PID Controller
Tensiune de alimentare maxima
253V ac
Maximum Voltage
250V
Tip afisare
7 Segment LED
Lungime
71mm
Standards/Approvals
EN 60751, EN 60584, CE marked, EN 61326-1:2013, EN 61010-1:2010
Latime
77mm
Protectie IP
IP20, IP65
Series
ET2011
Montare
Panel Mount
Input Type
Thermocouple
Panel Depth
71mm
Tara de origine
Turkey
Detalii produs

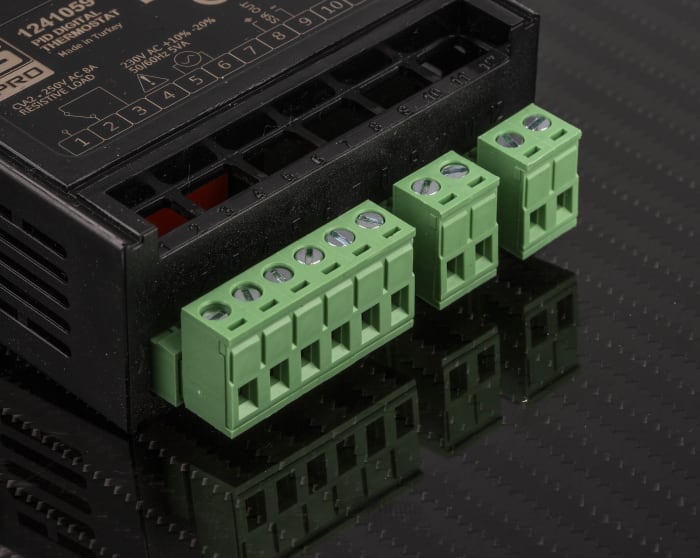

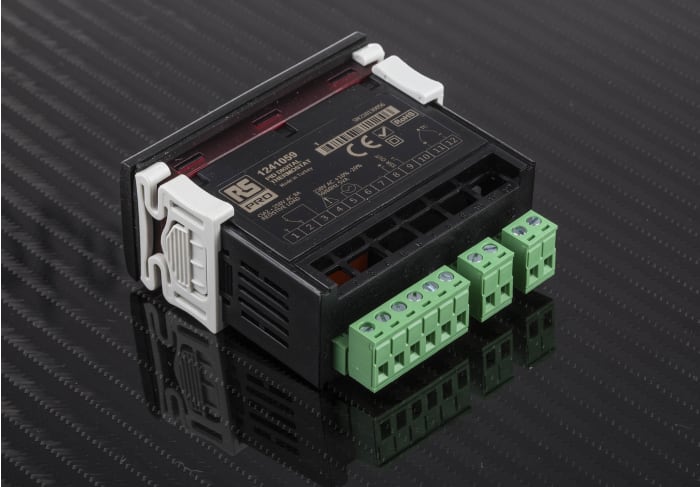

From our RS PRO range this high quality digital controller offers a thermocouple of PT100 sensor input. Featuring built in On/Off or PID control and 2 output (Relay or SSR) operation is quick, easy and user friendly. This controller is ideal for use in Industrial applications.
Options available:
124-1058 - 230V ac, 1 x relay, 1 x SSR, PT100
124-1059 - 230V ac, 1 x relay, 1 x SSR, Thermocouple
124-1060 - 24V ac, 1 x relay, 1 x SSR, Thermocouple
