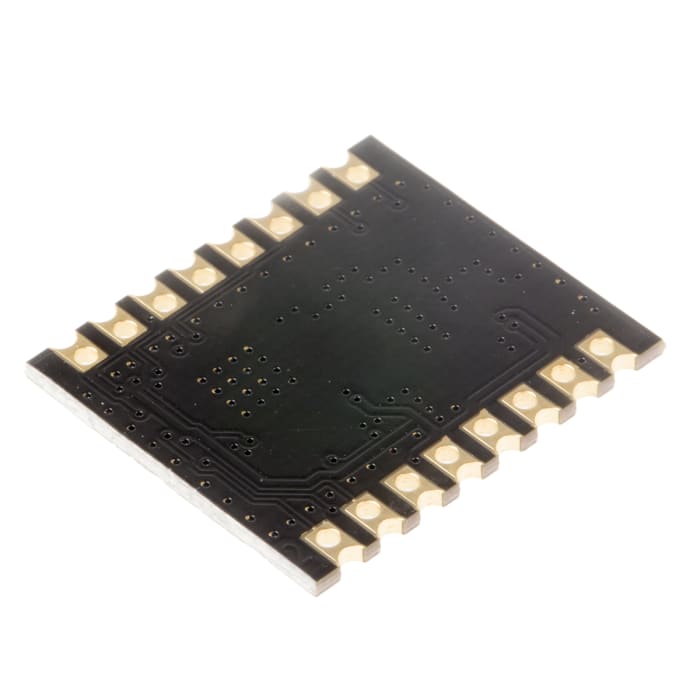

RF Solutions LoRa Module -130 dBm Receiver Sensitivity
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
RF SolutionsProduct Type
LoRa Module
Tensiune iesire maxima
20dBm
Receiver Sensitivity
-130dBm
Protocol Type
Lora
Supported Bus Interfaces
SPI
Tensiune de alimentare minima
1.8V
Tensiune de alimentare maxima
3.6V
Latime
19.95 mm
Inaltime
1mm
Standards/Approvals
No
Serie
RF-LoRA
Raza actiune
16 km
Tara de origine
United Kingdom
Detalii produs
LoRa 868GHz Long-Range RF Transceiver Module
The LoRa™ RF Transceiver Module features the Semtech SX1272 transceiver chip which uses a variation of Chirp Spread Spectrum coding called LoRa, to improve receiver sensitivity and hence achieve extended range. The module can also use OOK and FSK modulation schemes to maintain compatibility with other standards such as IEEE 802.15.4 and wMBUS. LoRa features increased interference immunity over conventional FSK providing an enhanced coexistence capability in crowded channels.
Approvals
CE
Wireless Modules - RF Solutions
Informatii despre stoc temporar indisponibile
€ 20,68
€ 20,68 Buc. (fara TVA)
€ 25,02
€ 25,02 Buc. (cu TVA)
1
€ 20,68
€ 20,68 Buc. (fara TVA)
€ 25,02
€ 25,02 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 20,68 |
| 5+ | € 19,47 |
