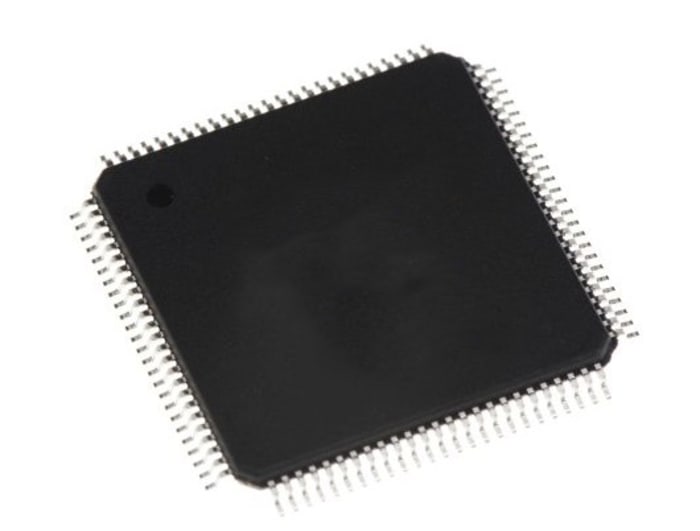

Renesas Electronics, 32 bit ARM Cortex M33, RA6T2 Microcontroller, 240 MHz, 1MB FLASH, 100-Pin LQFP

The Renesas Electronics high-performance 240 MHz Arm Cortex-M33 core microcontroller is used for high end motor control. It has Integrated general PWM timer with 200 MHz operation and high resolution. It combines a high-performance arm Cortex-M33 CPU and abundant peripheral functions into a single chip for excellent performance in motor applications. High speed CPU performance and motor dedicated functions realize next-gen motor algorithm and differentiators in motor fields. The combination of a powerful CPU, accelerators, and high-speed memory realizes high real-time performance, which is important for motor control.

• 512kb flash memory and 64kb SRAM (with ECC), 16kb data flash
• Accelerators for motor control (TFU, IIR filter)
• GPT32 10ch, AGTW 2ch
• 12-bit ADC 3ch S/H x 2unit, 12-bit DAC 4ch
• PGA 4 channel, comparator 4 channel
• CAN-FD support
• Safety and security
• 100-pin package

Benefits

• Optimized for motor control, it achieves high performance while suppressing BOM cost
• Easy to use solutions for motor control
• Motor control kit with workbench
• e-IA motor failure detection solution
• Functional safety solution

Applications

• Motor applications
• Home Appliances (Washer/Dryer, Dishwasher, IH Cooking, Air conditioner(ODU))
• Power Tools
• Industrial Automation (AC drive, AC servo, HVAC, Actuator, Power conditioner)
• Building Automation (HVAC, Door system)
