Documente Tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
P.M.ATip iesire
Relay
Product Type
PID Temperature Controller
Numar iesiri
2
Maximum Current
2A
Temperatura maxima de lucru
65°C
Temperatura minima de lucru
-20°C
Control Type
On-Off
Tensiune de alimentare maxima
260V
Auxiliary Power Supply
18 V, 22 mA
Digital Comms
RS422/RS485/Modbus RTU, PROFIBUS-DP
Diagnostics
Maintenance Manager and Error List, Sensor Break Or Short Circuit, Dac Function, Self Tuning, Heating Current Alarm, Control Loop Alarm, Error List
Maximum Voltage
250V
Tip afisare
LED, Multi Line
Standards/Approvals
EN 61010-1 (VDE 0411-1), cULus, EN 14597, EN 61326-1, DIN 3440
Latime
48mm
Protectie IP
IP00, IP65, IP20
Lungime
48mm
Series
KS90
Montare
Panel
Input Type
V Type Thermocouple, Universal Thermocouple, Potentiometer, O2 Sensor, RTD
Panel Depth
118mm
Tara de origine
United Kingdom
Detalii Produs

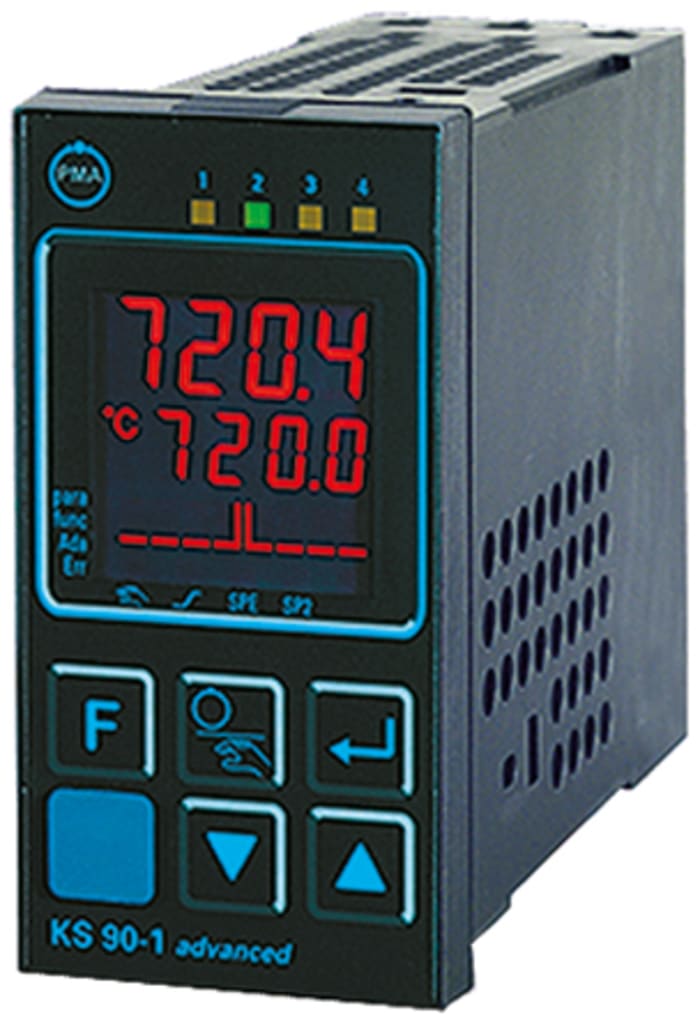

The KS 90-1 process controller is suitable for universal, precise, and cost-effective control. The instrument provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control.
The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement, as an external set-point inputter for position feedback measurement of motorised stepping controllers.
The optional 3rd input is a universal input that can be used for several functions, e.g. temperature dependent setpoint correction or differential control. The standard KS 90-1 is suitable for oxygen control using heated and unheated O2 sensors.
The KS 90-1 is particularly suited to the following applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers.
CE Certified
German Manual
Informatii despre stoc temporar indisponibile
€ 1.108,80
€ 1.108,80 Buc. (fara TVA)
€ 1.341,65
€ 1.341,65 Buc. (cu TVA)
1
€ 1.108,80
€ 1.108,80 Buc. (fara TVA)
€ 1.341,65
€ 1.341,65 Buc. (cu TVA)
