Pico Technology TA Series TA044 Oscilloscope Probe, Differential Type, 70 MHz, 1:100, 1:1000, BNC Connector

Pico Technology Oscilloscope Probe

The Pico Technology TA044 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±7000V. It can be used with a signal speed of up to 70Hz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.
By selecting attenuation ratio 1:100, this oscilloscope probe can measure signals below 70V to get higher resolution and less noise. Otherwise, set the attenuation to 1:1000.

Features and Benefits

• Bandwidth is DC to 70MHz (–3dB)
• Attenuation ratio is 100:1/1000:1
• Accuracy is ±2%
• Input impedance is 10Mohm ll10pF each side to ground
• Differential range is (100:1) ±700V (DC + peak AC) or 700VRMS
• Maximum differential is (1000:1) ±7000V (DC + peak AC) or 5000VRMS
• Common mode range is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1)
• Absolute maximum voltage is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1)
• Absolute maximum voltage is (differential mode) ±7000V (DC + peak AC) or
• 5000VRMS (100:1 & 1000:1)
• Swing is ±7V into 50kohm load
• Offset (typical) is <±5mV
• Noise (typical) is 0.9mVRMS
• Source impedance is (typical) 50ohm
• CMRR (typical) is 80dB at 6Hz and 50dB at 1MHz
• Ambient operating temperature ranges between -10°C and 40°C
• Power requirement 4xAA cells or 6VDC/200mA mains adaptor or regulated 9VDC/120mA mains adaptor
• Input lead length 600 mm

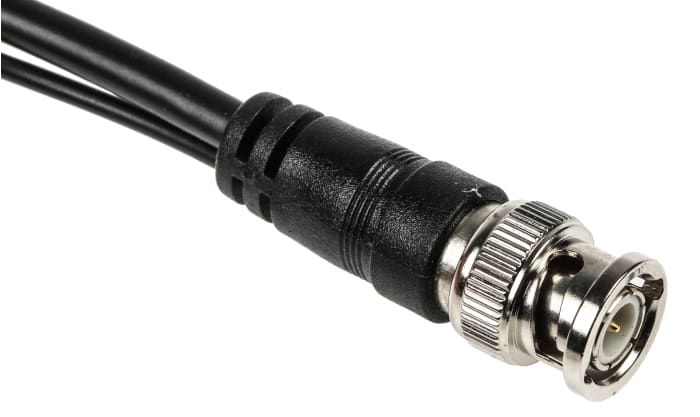

• BNC lead length 900 mm
• Dimensions (LxWxH): 202 x 83 x 38 mm

Applications

• Safe measurement in power circuit
• Acquisition of low speed balanced differential signals found in serial communications buses
• Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays
• Signals in the milliV range from sensors and other instrumentation

Certifications

• IEC-1010.2-031 CAT I certified
• Pollution Degree 2 certified

Notes

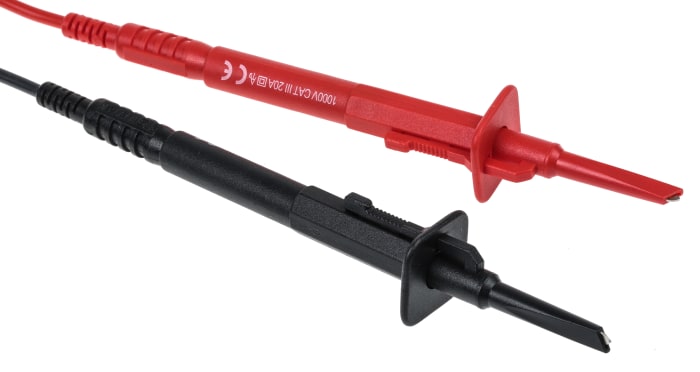

The spring hooks supplied with this probe are rated at 1000 V.
