Panasonic Background Suppression Distance Sensor, Block Sensor, 200 mm Detection Range
Documente tehnice
Specificatii
Marca
PanasonicSensor Style
Block
Detection Type
Background Suppression
Detection Range
200 mm
Tip iesire
NPN
Conexiune electrica
Cable
Maximum dc Voltage
24V
Light Source
Laser Light
Protectie IP
IP67
Maximum Current
40 mA
Timp de raspuns
10 ms
Temperatura minima de lucru
-10°C
Serie
HG-C
Housing Material
Acrylic, Die Cast Aluminium
Timp montare
Flange Mount
Temperatura maxima de lucru
+45°C
Standarde
EMC, FDA
Tara de origine
China
Detalii produs

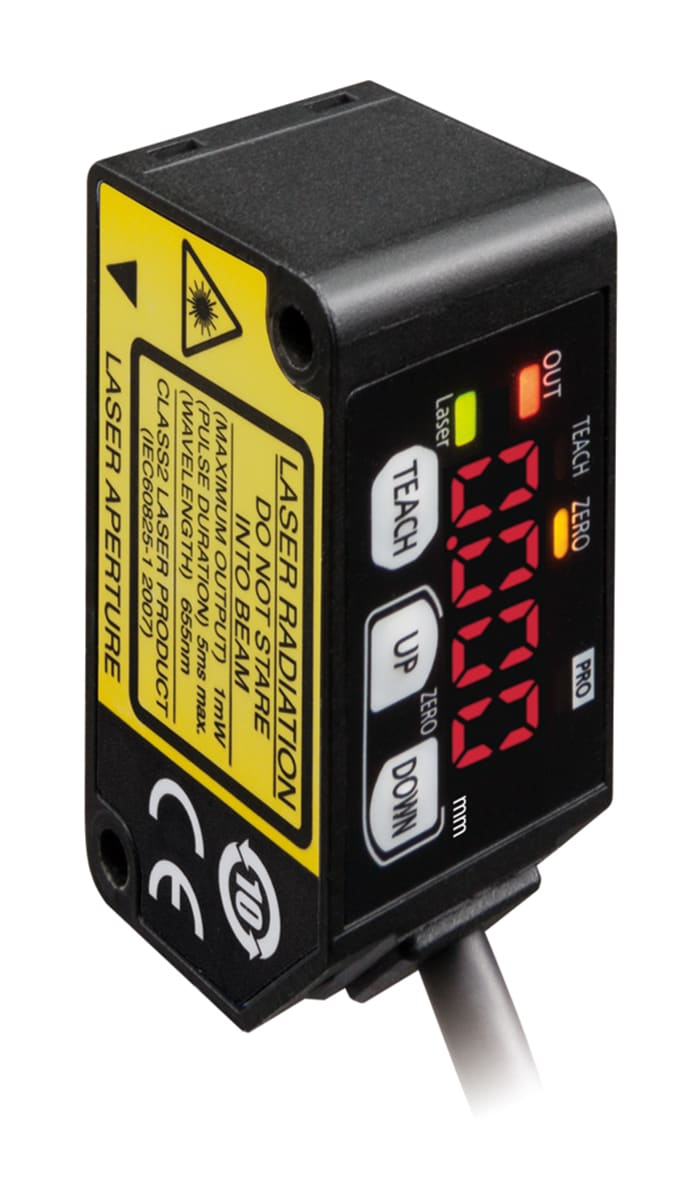

HG-C -- Micro Laser Distance Sensors
HG-C series micro laser distance sensors provides high-end performance in a small lightweight package. This sensor not only indicates measured values in mm, but also outputs analog voltage. The data can be used for various calculations and storage when the output is sento to a PLC + analog unit. Also, the external input can be configured to perform one of four functions: zero adjustment, teaching, laser ON/OFF or trigger function selection.
€ 993,99
€ 993,99 Buc. (fara TVA)
€ 1.182,85
€ 1.182,85 Buc. (cu TVA)
1
€ 993,99
€ 993,99 Buc. (fara TVA)
€ 1.182,85
€ 1.182,85 Buc. (cu TVA)
1
Informatii despre stoc temporar indisponibile
Incercati din nou mai tarziu
