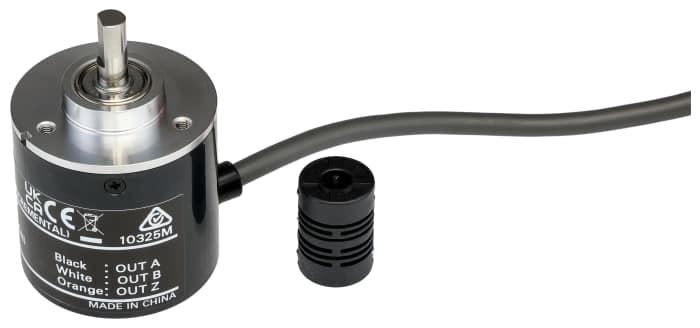

Omron E6B2 Series Incremental Incremental Encoder, 500 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft

Nr. stoc RS: 744-5334Producator: OmronCod de producator: E6B2-CWZ6C 500P/R 2M
brand-logo
Vezi toate produsele din Senzori de control miscare

Documente tehnice

Specificatii

Marca

Omron

Encoder Technology

Incremental

Dimensiune celula

E6B2

Pulses Per Revolution

500

Maximum Revolutions

6000rpm

Output Signal Type

NPN Open Collector

Shaft Type

Solid

Diametru ax

6mm

Tensiunea de alimentare

5 → 24 V dc

Protectie IP

IP50

Overall Height

59mm

Switching Frequency

100 kHz

Tara de origine

China

Detalii produs

General Purpose Incremental Encoders

Incremental Encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load shortcircuit
protection..

Omron Incremental Rotary Encoders
