Omron E5DC DIN Rail, Panel Mount PID Temperature Controller 4 Input, 2 Output Voltage 100V ac, 240 V ac On-Off
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
OmronProduct Type
PID Temperature Controller
Tip iesire
Voltage
Number of Inputs
4
Numar iesiri
2
Frecventa minima de auto-rezonanta
-10°C
Temperatura maxima de lucru
50°C
Tip terminal
Screw Terminal block
Control Type
On-Off
Tensiune de alimentare maxima
100, 240V ac
Digital Comms
RS485
Maximum Voltage
250V
Tip afisare
11 Segment
Lungime
96mm
Standards/Approvals
EN61326, IEC 61010-1, Korean Radio Waves Act, KOSHA, Lloyd's, EN 61010-1, UL 61010-1, EN 55011
Latime
48mm
Protectie IP
IP00, IP20
Series
E5DC
Montare
DIN Rail, Panel Mount
Panel Depth
600mm
Tara de origine
China
Detalii produs

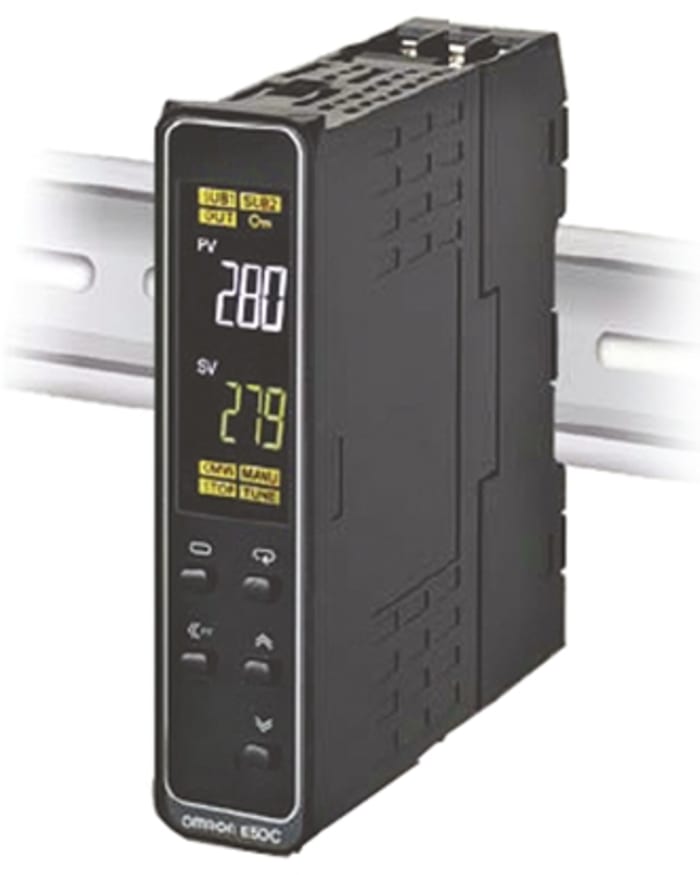

E5DC Digital Temperature Controllers (22.5 mm wide)
The E5DC temperature controller is setting a new global standard in terms of precision and user-friendly design. Best control performance, easy set-up and outstanding visibility of the white LCD display have been integrated into a space-saving housing with only 22.5mm wide.
Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges
Informatii despre stoc temporar indisponibile
€ 331,17
€ 331,17 Buc. (fara TVA)
€ 400,72
€ 400,72 Buc. (cu TVA)
1
€ 331,17
€ 331,17 Buc. (fara TVA)
€ 400,72
€ 400,72 Buc. (cu TVA)
