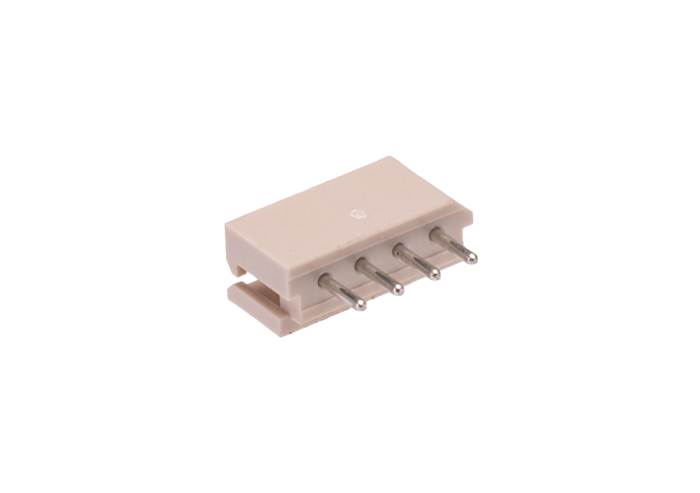

Molex SPOX Series Vertical Through Hole PCB Header, 4 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded

Molex SPOX Series PCB Header, 3A Current Rating, 2.5mm Pitch - 22-03-5045

This PCB header connector is designed for efficient wire-to-board connections with a vertical mount orientation. The 2.5mm pitch makes it suitable for high-density applications, ensuring reliable signal integrity and connectivity. Its robust construction and shrouded design provide enhanced protection and secure connections, making it an important component for professionals in the electronics and automation sectors.

Features & Benefits

• Vertical orientation optimises space in Compact assemblies
• Durable construction rated for up to 30 mating cycles
• Compatible with standard PCB thickness of 1.60mm for easy integration

Applications

• Employed in various electronic devices requiring secure connections
• Suitable for LED lighting needing Compact headers
• Ideal for signal transmission in consumer electronics

What is the maximum voltage rating this connector can handle?

It can handle a maximum voltage of 250V, making it suitable for a wide range of applications.

How many mating cycles is this connector rated for?

The connector is rated for up to 30 mating cycles, providing durability for repeated use.

What is the recommended PCB thickness for optimal performance?

The recommended PCB thickness is 1.60mm, ensuring secure retention and performance.

Are there any restrictions on the type of cables that can be used?

This connector is compatible with various wire gauges typically used in PCB applications; however, consult specifications for the Ideal wire size.
