Documente Tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
KingbrightProduct Type
LED Display
Tip afisare
7 Segment
Number of Characters
2
LED Colour
Red
Number of Segments
7
Dominant Wavelength
630nm
Character Width
5.6mm
Character Height
10.2mm
Common Connection
Anode
Montare
Surface
External Width
18.5mm
External Height
15mm
External Depth
3.8mm
Frecventa minima de auto-rezonanta
-40°C
Temperatura maxima de lucru
85°C
Luminous Intensity
27mcd
Colour of Face
Grey
Standards/Approvals
RoHS
Forward Voltage
2V
Power Dissipation
75mW
Decimal Orientation
Right Side
Forward Current
30mA
Tara de origine
China
Detalii Produs

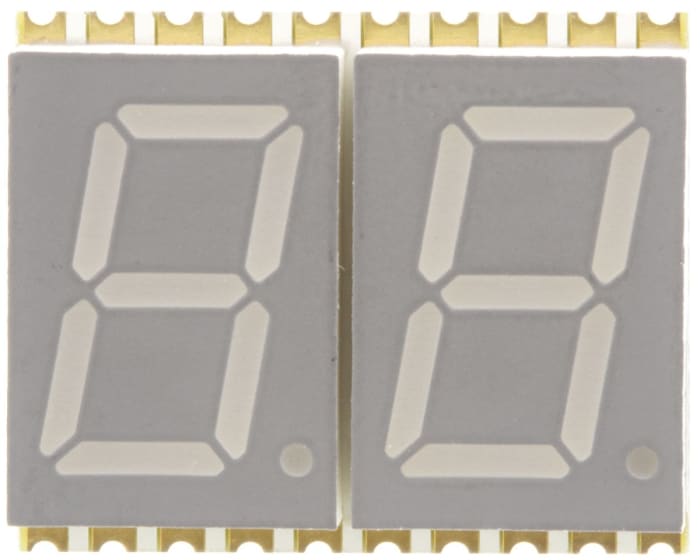

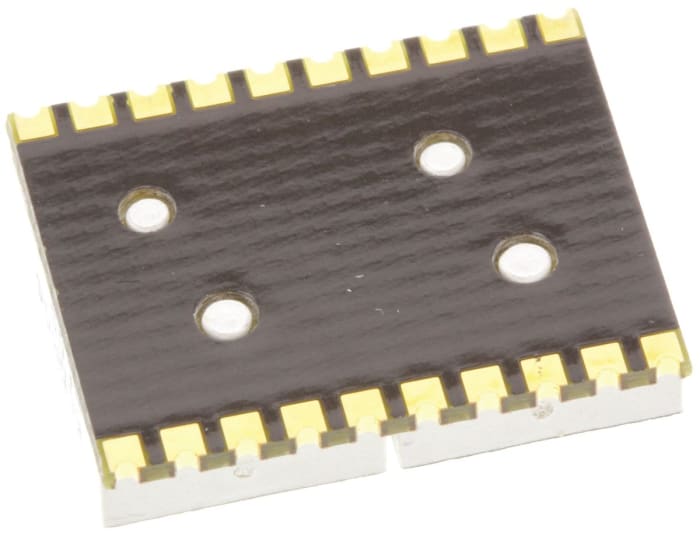

A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Informatii despre stoc temporar indisponibile
€ 149,75
€ 5,99 Buc. (Livrat pe rola) (fara TVA)
€ 181,20
€ 7,248 Buc. (Livrat pe rola) (cu TVA)
Impachetare pentru productie (Rola)
25
€ 149,75
€ 5,99 Buc. (Livrat pe rola) (fara TVA)
€ 181,20
€ 7,248 Buc. (Livrat pe rola) (cu TVA)
Informatii despre stoc temporar indisponibile
Impachetare pentru productie (Rola)
25
| Cantitate | Pret unitar | Per Rola |
|---|---|---|
| 25 - 95 | € 5,99 | € 29,95 |
| 100 - 245 | € 5,77 | € 28,85 |
| 250 - 495 | € 5,57 | € 27,85 |
| 500+ | € 5,38 | € 26,90 |
