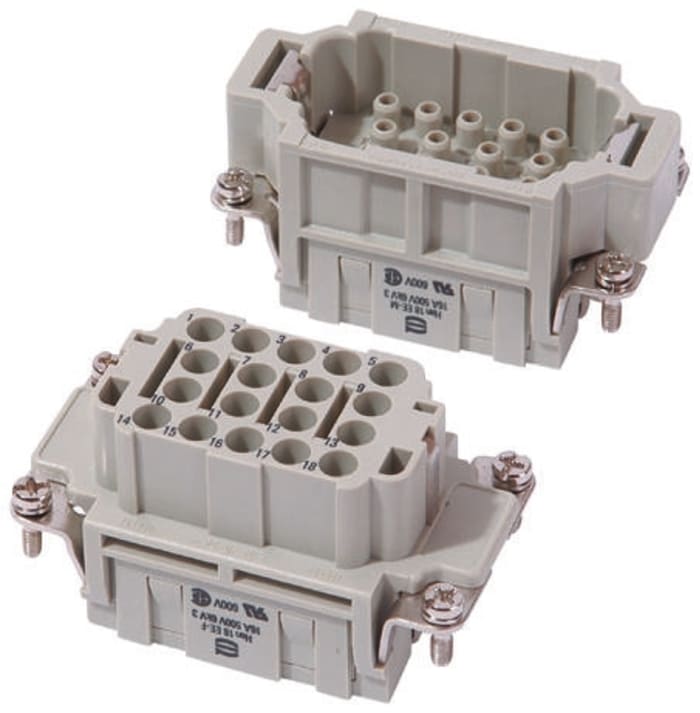

HARTING Heavy Duty Power Connector Insert, 16A, HAN EE Series Female, 18 Contacts

Harting HAN EE Series Heavy Duty Power Connector Insert, 16A Current Rating, 500V Voltage - 9320183101

This heavy-duty power connector insert provides a robust cable-mounted electrical Interface for industrial equipment, designed to carry power in demanding automation and electrical installations. Engineered as a female insert with a straight orientation, it integrates into multi-row housings to enable secure power connections where multiple contacts are required. Its construction suits applications requiring up to medium-voltage distribution and reliable current handling in machine and panel cabling.

Features & Benefits

• 16A rating delivers steady current for typical control loads
  500V capability supports medium-voltage power circuits
  18 contacts Plus earth allow complex power arrangements
  Polycarbonate contact material offers Durable insulation performance
  Cable-mount format simplifies field wiring and replacement
  Compatible wire range 4 mm² to 0.14 mm² accommodates varied conductors

**Applications**

• Suitable for power distribution in automated assembly cells
  Ideal for connection between motors and control cabinets
  Used with heavy-duty housings in mobile machinery interfaces
  Can be used for multi-circuit power feeds in test benches
  Used for replacing worn inserts during maintenance work

What contact arrangement does it provide for segregating circuits?

It features an 18-contact layout with a separate earth contact, enabling distinct segregation of multiple power circuits and protective earth within one insert.

Which mounting method must I prepare for in panel integration?

The component is intended for cable mounting, so installations should allow for rear cable entry and secure clamping of conductors.

What standards influence its electrical insulation design?

Its insulating system complies with IEC 60664-1 requirements for electrical separation and clearance/creepage distances.

How does contact material affect operating conditions?

Polycarbonate insulation maintains electrical separation and mechanical integrity across typical industrial temperature ranges while supporting repeated insertions.

What conductor sizes are suitable for reliable termination?

Termination accepts conductors from 0.14 mm² up to 4 mm², supporting both fine-stranded control cables and larger power flexes.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection
