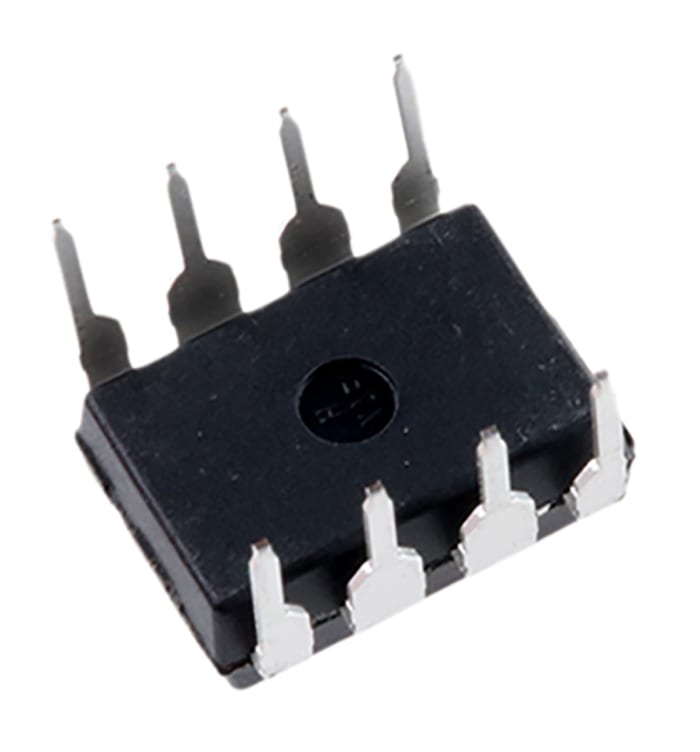

Broadcom 6N138-000E DC Input Optocoupler, Through Hole, 8-Pin PDIP
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
BroadcomProduct Type
Optocoupler
Montare
Through Hole
Maximum Forward Voltage
1.7V
Packaging
Tape & Reel
Number of Channels
1
Number of Pins
8
Tip pachet
PDIP
Curent de intrare
DC
Maximum Input Current
20mA
Isolation Voltage
3.75kVrms
Temperatura minima de lucru
-55°C
Logic Output
Yes
Maximum Current Transfer Ratio
2600%
Temperatura maxima de lucru
100°C
Minimum Current Transfer Ratio
300%
Standards/Approvals
UL 1577, CSA Component Acceptance Notice 5, IEC/EN/DIN EN 60747-5-5
Series
6N138
Automotive Standard
No
Detalii produs
Optocoupler, Darlington Transistor Output, Avago Technologies
This range of optocouplers with darlington output, from Avago Technologies, offer a high current transfer ratio with low input current requirements. The optocoupler devices use light emitting diodes (LEDs) optically coupled with integrated high gain photodetectors. They provide excellent input-output common mode transient immunity and guaranteed performance over temperatures of 0 to 70°C.
Optocouplers, Avago Technologies
Informatii despre stoc temporar indisponibile
€ 1,71
€ 1,71 Buc. (fara TVA)
€ 2,07
€ 2,07 Buc. (cu TVA)
Standard
1
€ 1,71
€ 1,71 Buc. (fara TVA)
€ 2,07
€ 2,07 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
Standard
1
