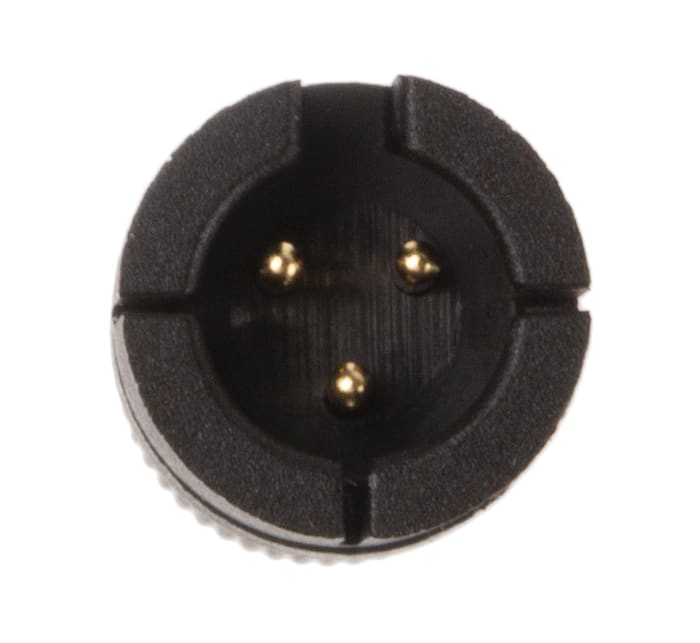

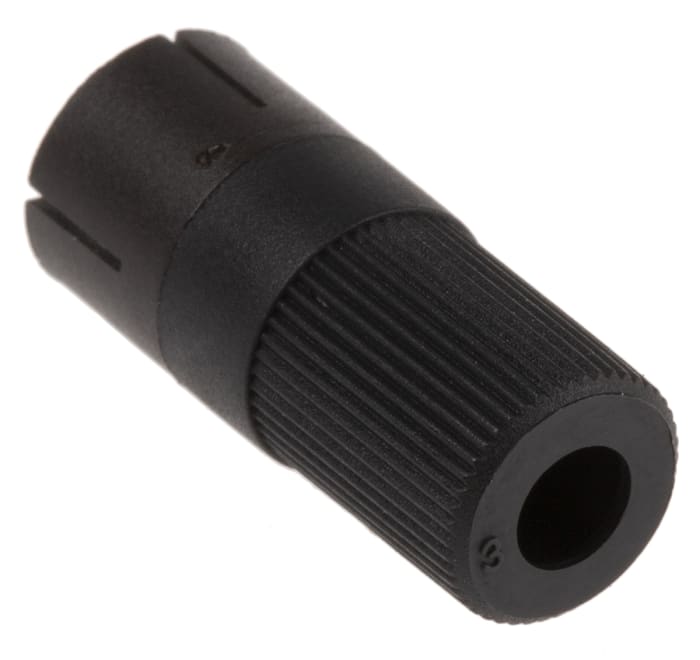

binder Circular Connector, 3 Contacts, Cable, Subminiature Connector, Plug, Male, IP40, 719 Series

Binder 719 Series Circular Connector, 3A Current, 60V Voltage - 09-9747-00-03

This circular connector provides a compact, three-contact Interface for cable-mounted assemblies in industrial automation and electronic equipment. Designed as a straight male plug with snap-in mating, it links signal circuits where a small, robust connector is required while operating across typical indoor industrial environments.

Features and Benefits:

• Three contacts supporting 3A current for low-power signal circuits
  Gold-plated brass contacts to improve conductivity and corrosion resistance
  Polyamide housing offering lightweight mechanical protection
  Solder termination enabling secure, low-resistance cable connections
  Rated to 60V for control and low-voltage distribution applications
  Operating range from -25 to 70°C for varied thermal conditions

Applications

• Suitable for sensor and actuator wiring in automated lines
  Ideal for control-panel cable interconnections in machinery
  Used with inspection cameras and Compact electronic modules
  Can be used for low-voltage power and signal harnesses in robotics
  Suitable for fieldbus and peripheral connections in test rigs

What mounting method does it use for cable assemblies?

It is intended for cable mounting and secures via a snap-in mating mechanism that simplifies installation without threaded coupling.

What is the connector’s environmental protection level?

The enclosure provides IP40 ingress protection, guarding against solid objects greater than 1mm but not against liquids.

Which contact materials and finishes are employed?

Contacts are brass with a gold finish to maintain low contact resistance and resist surface oxidation under normal operating conditions.

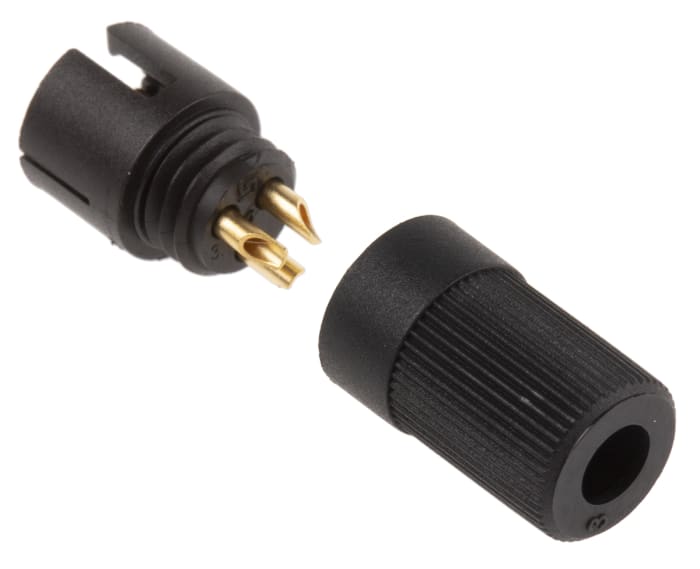

How is the connector terminated to conductors?

Termination is achieved by soldering, delivering a reliable electrical joint for fixed cable installations.
