Amprobe HD110C HD110C Handheld Digital Multimeter True RMS, 2 A Max, 2 A Max, 1000 V ac Max
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
AmprobeMultimeter Type
Handheld
Product Type
Multimeter
Tip afisare
Digital
Model
HD110C
Functie
Resistance, AC Current, DC Current, AC Voltage, DC Voltage
Maximum AC Current Measurement
2A
Maximum Resistance Measurement
20mΩ
Maximum DC Voltage Measurement
1500V
Maximum DC Current Measurement
2A
Maximum AC Voltage Measurement
1000V ac
True RMS
Yes
DC Voltage Accuracy
±0.1 % rdg + 2 Digits
DC Current Accuracy
±1 % rdg + 2 Digits
AC Voltage Accuracy
±1.5 % rdg + 5 Digits
AC Current Accuracy
±1.2 % rdg + 4 Digits
DC Current Resolution
0.1μA ac
AC Voltage Resolution
0.1mV ac
AC Current Resolution
0.1μA ac
DC Voltage Resolution
0.1 mV dc
Frecventa maxima
2kHz
Power Source
Standard 9 V Battery Power Supply
Temperatura minima de lucru
0°C
Resistance Measurement Accuracy
±2 % + 4 Digits
Battery Life
500h
Temperatura maxima de lucru
50°C
Latime
102 mm
Serie
HD110C
Inaltime
200mm
Lungime
59mm
Greutate
642g
Standards/Approvals
No
Safety Category Level
CAT IV
Safety Category Voltage
1000V
Tara de origine
Taiwan, Province Of China
Detalii produs

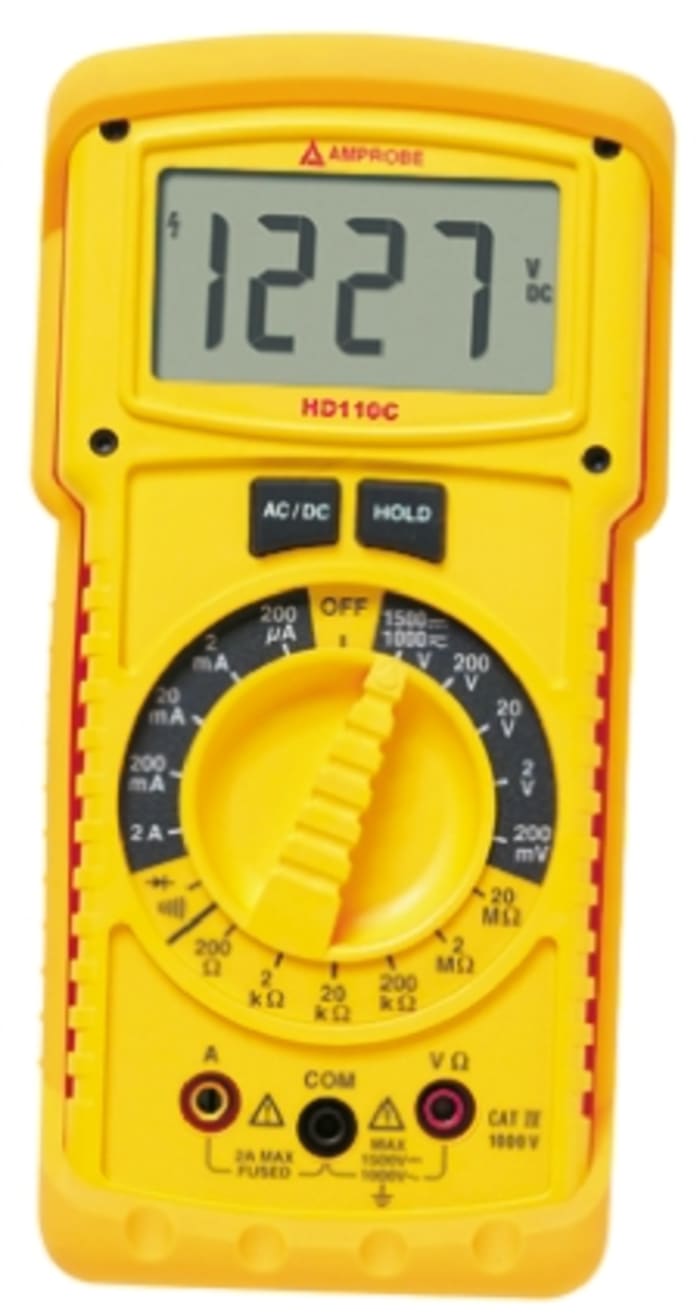

HD110C IP67 Heavy Duty Multimeter
The HD110C Heavy Duty Digital Multimeter is designed for professional use in harsh environments. The multimeter is unusually rugged and reliable in everyday heavy use applications. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.
Supplied with
Test leads, 9V battery (installed), users manual, Magne-Grip™ holder with magnetic hanging strap
Standards
CAT IV 1000 V
