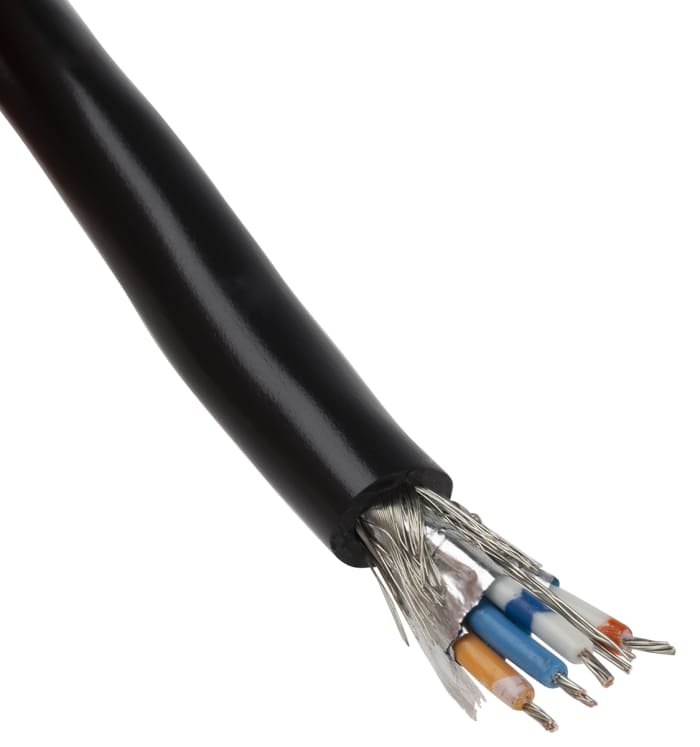

Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 2 Pairs, 4 Cores, 0.456 mm², Screened, 22 AWG, 30m,
Documente tehnice
Specificatii
Marca
Alpha WireNumber of Pairs
2
Cross Sectional Area
0.456 mm²
Number of Cores
4
American Wire Gauge
22 AWG
Screened/Unscreened
Screened
Lungime
30m
Shield Type
Foil and Braid
Culoare invelis
Black
Tip cablu
RS-485
Diametru exterior
10.36mm
Outer Sheath Material
PVC
Cable Shape
Twisted Pair
Characteristic Impedance
120 Ω
Serie
Alpha Essentials
Core Strands
7/30 AWG
Temperatura minima de lucru
-20°C
Standarde
CE, CSA, UL
Tensiune nominala
300 V
Temperatura maxima de lucru
+60°C
Protejat
Shielded
Rezistenta la foc
Fire Resistant
Tara de origine
United States
Detalii produs
Alpha Wire 300 V Foil + Braid Multipair RS-485 Cable
Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 250,68
€ 250,68 1 Reel of 30 Metres (fara TVA)
€ 298,31
€ 298,31 1 Reel of 30 Metres (cu TVA)
1
€ 250,68
€ 250,68 1 Reel of 30 Metres (fara TVA)
€ 298,31
€ 298,31 1 Reel of 30 Metres (cu TVA)
1
