4D Systems gen4-uLCD-24DT LCD Colour Display Touch Screen, 60.96 mm, 240 x 320 pixel
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
4D SystemsDiagonala display
60.96mm
Product Type
LCD Colour Display
Interfata
Serial
Current
160mA
Screen Resolution
240 x 320 pixel
Touch Screen
Yes
Dimensiune zona vizuala
37 x 49 mm
Touch Screen Type
Resistive
Backlight Type
LED
Tensiune de alimentare minima
4V
Tensiune de alimentare maxima
5.5V
Temperatura minima de lucru
-10°C
Temperatura maxima de lucru
60°C
Latime
78.4 mm
Inaltime
7.2mm
Adancime
48.96mm
Standards/Approvals
CE
Brightness
182cd/m²
Contrast Ratio
250:1
Power Supply Included
No
Series
gen4
Tip afisare
LCD
Tara de origine
China
Detalii produs

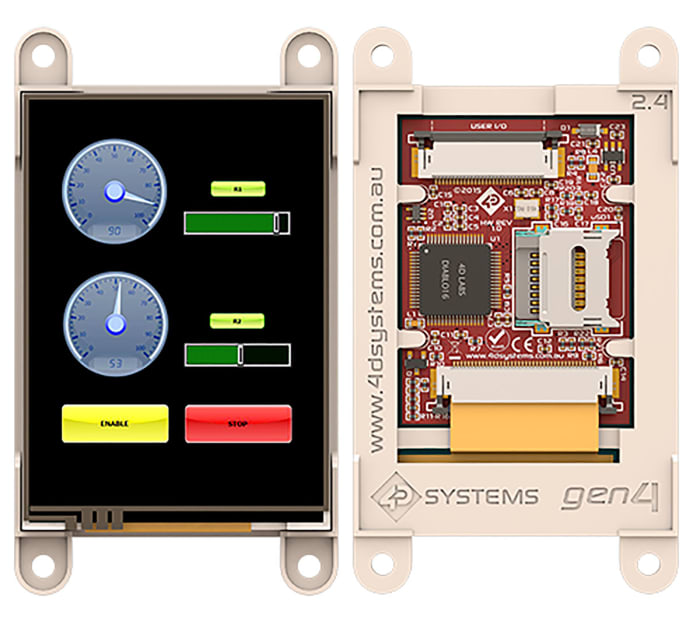

gen4-uLCD-24DT Diablo16 Touch LCD Module
The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution. This 2.4” 240 x 320 pixel variant features 4-wire resistive touch for applications requiring a human-machine interface.
The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.
gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments.
4D Systems gen4 LCD Display Modules
Informatii despre stoc temporar indisponibile
€ 41,46
€ 41,46 Buc. (fara TVA)
€ 50,17
€ 50,17 Buc. (cu TVA)
1
€ 41,46
€ 41,46 Buc. (fara TVA)
€ 50,17
€ 50,17 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 9 | € 41,46 |
| 10+ | € 36,14 |
