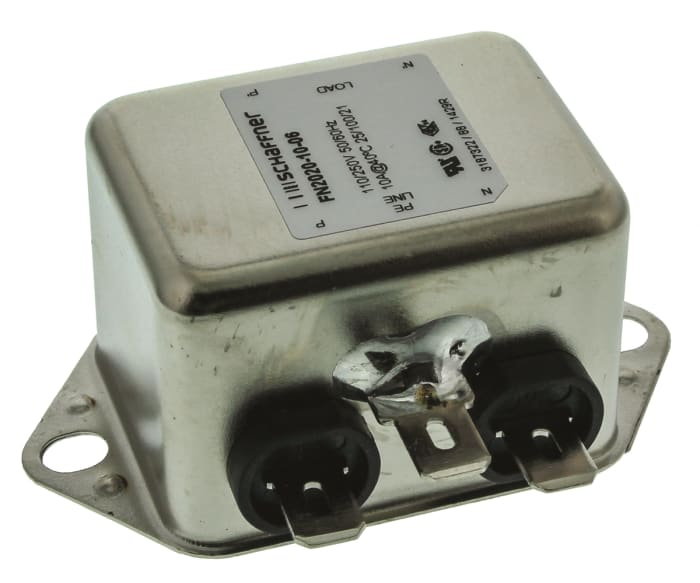

Schaffner, FN2010 10A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
Documente tehnice
Specificatii
Marca
SchaffnerMaximum Current Rating
10A
Maximum Voltage Rating
250 V ac/dc
Timp montare
Chassis Mount
Terminal
Fast-On
Number of Phases
1
Serie
FN2010
Number of Stages
Single Stage
Operating Frequency
0 → 400Hz
Lungime
64mm
Adancime
35mm
Capacitate
4.7 nF, 100nF
Inaltime
29.3mm
Inductanta
800 μH
Dimensiuni
64 x 35 x 29.3mm
Temperatura minima de lucru
-25°C
Leakage Current
0.74 mA
Temperatura maxima de lucru
+100°C
Rezistenta
1MΩ
Power Loss
2.5W
Tara de origine
Thailand
Detalii produs
FN2010 Series
Approvals
UL recognised component, CSA certified, VDE
€ 15,35
€ 15,35 Buc. (fara TVA)
€ 18,27
€ 18,27 Buc. (cu TVA)
1
€ 15,35
€ 15,35 Buc. (fara TVA)
€ 18,27
€ 18,27 Buc. (cu TVA)
1
Informatii despre stoc temporar indisponibile
Incercati din nou mai tarziu
| Cantitate | Pret unitar |
|---|---|
| 1 - 9 | € 15,35 |
| 10 - 24 | € 14,14 |
| 25 - 49 | € 13,10 |
| 50 - 99 | € 12,23 |
| 100+ | € 11,23 |
