Documente tehnice
Specificatii
Marca
VishayPeak Average Forward Current
8A
Bridge Type
Single Phase
Peak Reverse Repetitive Voltage
1000V
Timp montare
Through Hole
Tip pachet
D 72
Numar pini
4
Configuration
Single
Peak Non-Repetitive Forward Surge Current
137A
Temperatura maxima de lucru
+150 °C
Temperatura minima de lucru
-55 °C
Peak Forward Voltage
1V
Curentul de varf invers
100mA
Dimensiuni
15.75 x 15.75 x 5.33mm
Lungime
15.75mm
Inaltime
5.33mm
Latime
15.75mm
Tara de origine
India
Detalii produs

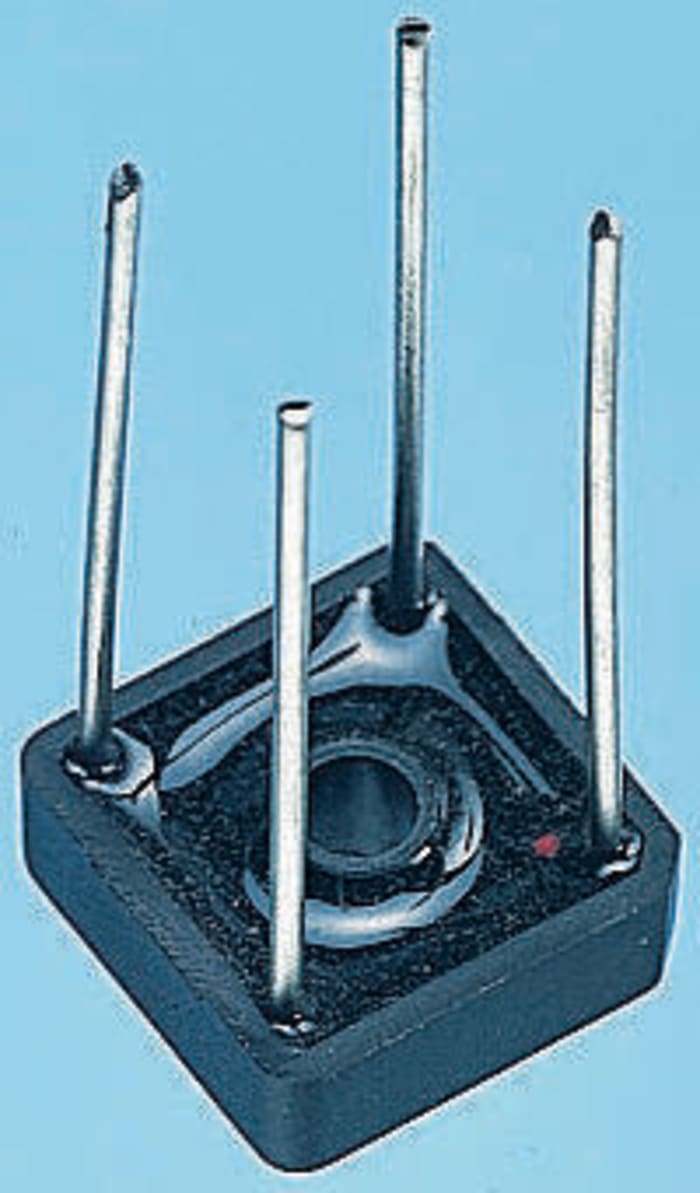

Bridge Rectifiers with Wire Leads, KBPC Series, Vishay Semiconductor
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
€ 21,05
€ 4,21 Buc. (Intr-un pachet de 5) (fara TVA)
€ 25,05
€ 5,01 Buc. (Intr-un pachet de 5) (cu TVA)
Standard
5
€ 21,05
€ 4,21 Buc. (Intr-un pachet de 5) (fara TVA)
€ 25,05
€ 5,01 Buc. (Intr-un pachet de 5) (cu TVA)
Standard
5
Informatii despre stoc temporar indisponibile
Incercati din nou mai tarziu
Cantitate | Pret unitar | Per Pachet |
---|---|---|
5 - 20 | € 4,21 | € 21,05 |
25 - 45 | € 3,75 | € 18,75 |
50 - 120 | € 3,50 | € 17,50 |
125 - 245 | € 3,27 | € 16,35 |
250+ | € 2,95 | € 14,75 |
