Weidmuller 9503310000 KDKS Series Brown, 4mm², Double-Level, Screw Termination, Fused
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
WeidmüllerCuloare
Brown
Numar nivele
Double
Serie
KDKS
Tensiune
500 V
American Wire Gauge
26 → 12AWG
Terminal
Screw
Cable CSA
4mm²
Fused
Yes
Curent nominal
6.3A
Pitch
8mm
Frecventa minima de auto-rezonanta
-50°C
Temperatura maxima de lucru
+100°C
Standarde
CE, CSA, DNV, EAC
Model
KDKS 1/35
Tara de origine
Romania
Detalii produs
Fused, Feedthrough and Earth

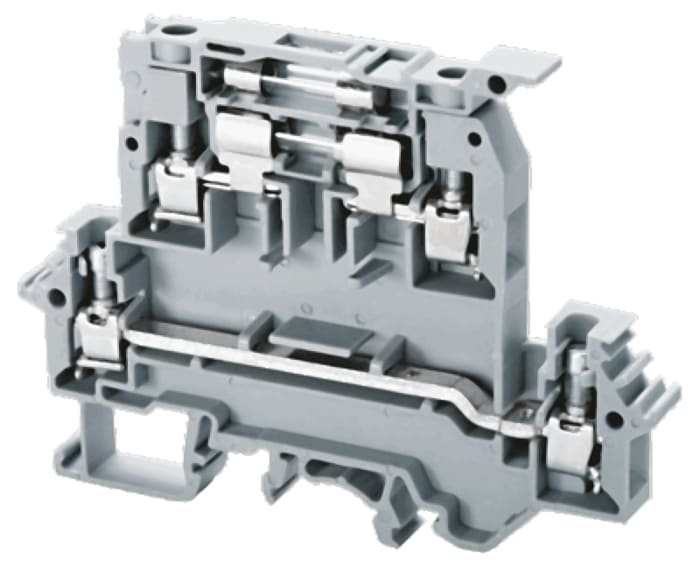

This flexible terminal block enables a fuse connection via the top level, a straight feedthrough middle level and, on the KDKS1/PE, an earth connection to the DIN rail by the bottom level. Fuse of 20x5mm or 25x5mm may be fitted.
Warning
With full blown fuse the follow on circuit is still under current. Disconnect lever to open circuit.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
€ 62,10
€ 12,42 Buc. (Intr-un pachet de 5) (fara TVA)
€ 75,14
€ 15,028 Buc. (Intr-un pachet de 5) (cu TVA)
5
€ 62,10
€ 12,42 Buc. (Intr-un pachet de 5) (fara TVA)
€ 75,14
€ 15,028 Buc. (Intr-un pachet de 5) (cu TVA)
Informatii despre stoc temporar indisponibile
5
Informatii despre stoc temporar indisponibile
