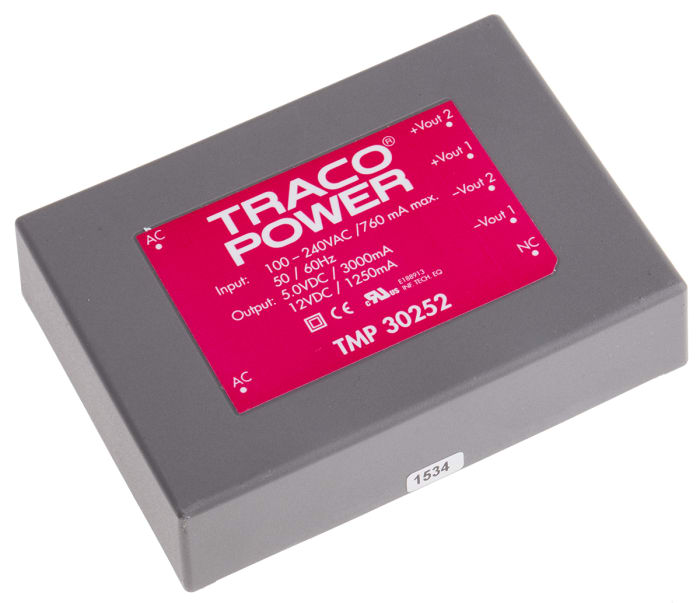

TRACOPOWER Switching Power Supply, TMP 30252C, 5 V dc, 12 V dc, 1.25A, 30W, Dual Output, 120 → 370 V dc, 85

Nr. stoc RS: 664-1512Producator: TRACOPOWERCod de producator: TMP 30252C
brand-logo

Documente tehnice

Specificatii

Tensiune iesire

5 V dc, 12 V dc

Curent iesire

1.25 A, 3A

Putere

30W

Numar iesiri

2

Tensiune intrare

120 → 370 V dc, 85 → 264 V ac

Timp montare

Chassis Mount

Tip pachet

Encapsulated

Lungime

112mm

Latime

63.8mm

Adancime

25.6mm

Efficiency

76%

Temperatura minima

-25°C

Greutate

191g

Maximum Temperature

+60°C

Tara de origine

Taiwan, Province Of China

Detalii produs

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Approvals

CB, UL recognised component for Canada & US

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Switch Mode - Traco, TMP and TMPM Series

Informatii despre stoc temporar indisponibile

€ 93,92

€ 93,92 Buc. (fara TVA)

€ 111,76

€ 111,76 Buc. (cu TVA)

TRACOPOWER Switching Power Supply, TMP 30252C, 5 V dc, 12 V dc, 1.25A, 30W, Dual Output, 120 → 370 V dc, 85

€ 93,92

€ 93,92 Buc. (fara TVA)

€ 111,76

€ 111,76 Buc. (cu TVA)

TRACOPOWER Switching Power Supply, TMP 30252C, 5 V dc, 12 V dc, 1.25A, 30W, Dual Output, 120 → 370 V dc, 85
Informatii despre stoc temporar indisponibile

Informatii despre stoc temporar indisponibile

Incercati din nou mai tarziu

CantitatePret unitar
1 - 4€ 93,92
5 - 9€ 90,23
10 - 24€ 86,61
25 - 49€ 82,11
50+€ 77,69

Documente tehnice

Specificatii

Tensiune iesire

5 V dc, 12 V dc

Curent iesire

1.25 A, 3A

Putere

30W

Numar iesiri

2

Tensiune intrare

120 → 370 V dc, 85 → 264 V ac

Timp montare

Chassis Mount

Tip pachet

Encapsulated

Lungime

112mm

Latime

63.8mm

Adancime

25.6mm

Efficiency

76%

Temperatura minima

-25°C

Greutate

191g

Maximum Temperature

+60°C

Tara de origine

Taiwan, Province Of China

Detalii produs

Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series

4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Approvals

CB, UL recognised component for Canada & US

Standards

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

Switch Mode - Traco, TMP and TMPM Series
