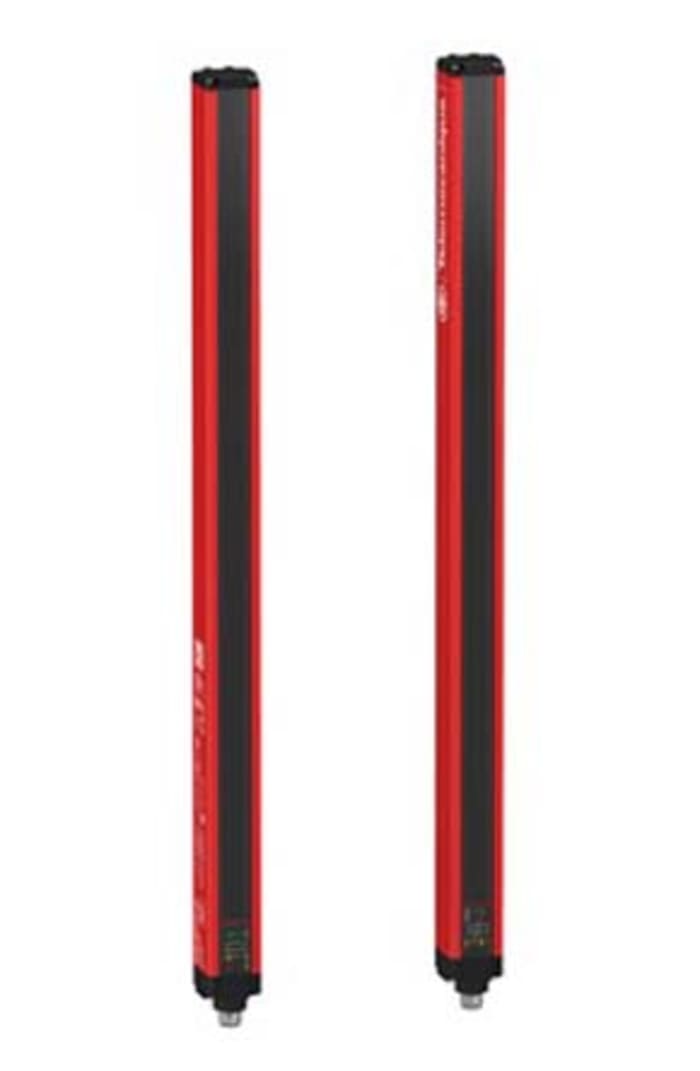

Telemecanique Sensors XUSL4E Series Preventa Light Curtain Receiver, Transmitter, 91 Beam(s), 30mm Resolution
Documente tehnice
Specificatii
Raza actiune
Preventa
Serie
XUSL4E
Beam Resolution
30mm
Component Type
Receiver, Transmitter
Safety Type
4
SIL IEC 61508
3
PL EN ISO 13849-1
e
Number Of Beams
91
Protective Height
1810mm
Minimum Scanning Distance
0m
Maximum Scanning Distance
4 m, 12 m
Maximum Response Time
22 ms
Inaltime
1863mm
Tensiunea de alimentare
24 V dc
Lungime
31mm
Dimensiuni
31 x 29.4 x 1863 mm
Tip terminal
5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver)
Application
Hand
Functii
2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs
Latime
29.4mm
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 4.283,02
1 Pair (fara TVA)
€ 5.096,79
1 Pair (cu TVA)
1
€ 4.283,02
1 Pair (fara TVA)
€ 5.096,79
1 Pair (cu TVA)
1
