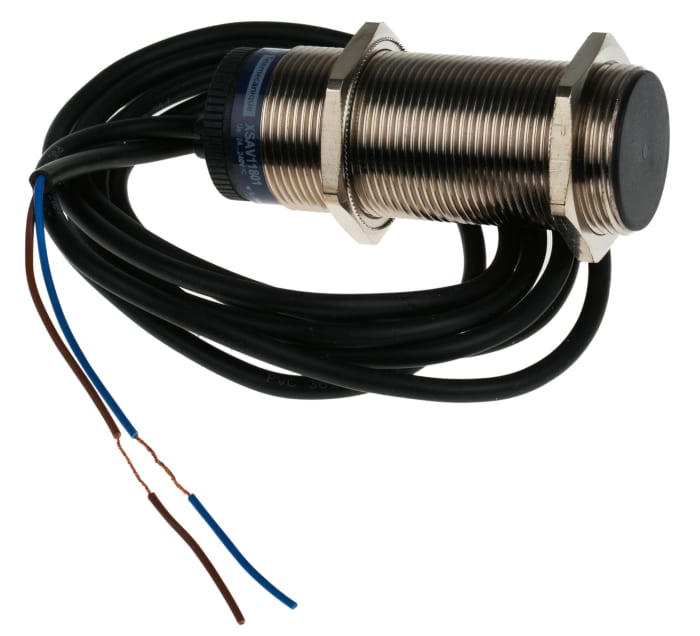

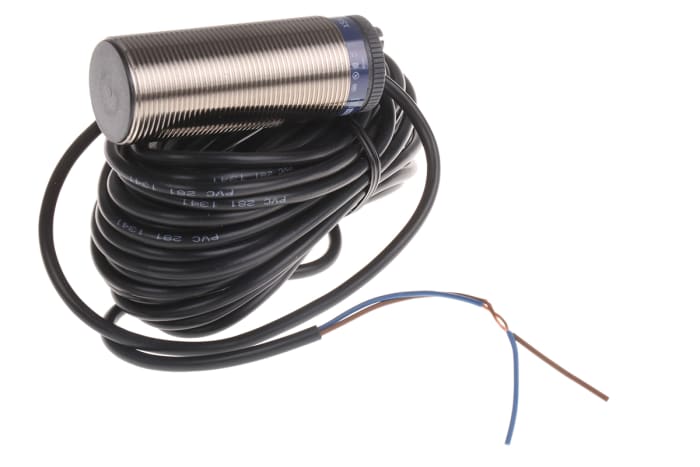

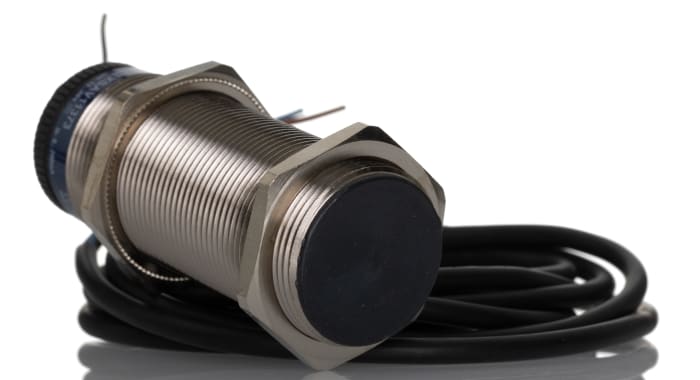

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, 2-Wire NC, 24 → 210 V
Documente tehnice
Specificatii
Dimensiune filet
M30
Tehnologie senzor
Inductive
Body Style
Barrel
Detection Range
10 mm
Body Style
Threaded Barrel
Output Function
NC
Digital Switching Output Type
2-Wire
Lungime cablu
2m
Tip conexiune
Pre-Cabled
Tensiunea de alimentare
24 → 210 V dc, 24 → 240 V ac
Protectie IP
IP67
Lungime
81mm
Timp montare
Flush
Housing Material
Metal
Maximum dc Voltage
58V
Temperatura minima de lucru
-25°C
Shielding
Shielded
Curent de comutare
200 mA, 300 mA
Reverse Polarity Protection
Yes
Serie
XS
Temperatura maxima de lucru
+70°C
Maximum Switching Frequency
800Hz
Short Circuit Overload Protection
Yes
Tara de origine
France
Detalii produs
Telemecanique Inductive Sensors
Introducing Telemecaniques M30 Rotation Monitoring range of inductive proximity sensors which have been created and designed for use within applications with applications where metal detection is required. These Telemecanique cylindrical OsiSense XS inductive proximity sensors are designed for non-contact sensing of metal objects up to 60mm. They feature LED status display with a flush mountable brass body, each one has a pre-wired 2m cable and reverse polarity protection. They will predominantly be found in applications within the food and beverage industry.
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 255,05
Buc. (fara TVA)
€ 303,51
Buc. (cu TVA)
1
€ 255,05
Buc. (fara TVA)
€ 303,51
Buc. (cu TVA)
1
Cumpara in pachete mari
| Cantitate | Pret unitar |
|---|---|
| 1 - 2 | € 255,05 |
| 3+ | € 239,47 |
