Documente tehnice
Specificatii
Marca
TE ConnectivityNumar contacte
2
Number Of Rows
1
Subtip
Female
Pitch
3.96mm
Montare
Cable Mount
Body Orientation
Right Angle
Terminal
IDC
Curent nominal
7A
Placa contact
Tin over Nickel
Serie
MTA-156
Frecventa minima de auto-rezonanta
-55°C
Temperatura maxima de lucru
+105°C
Tensiune nominala
600 V ac
Material de contact
Copper Alloy
Housing Material
Nylon
Detalii produs

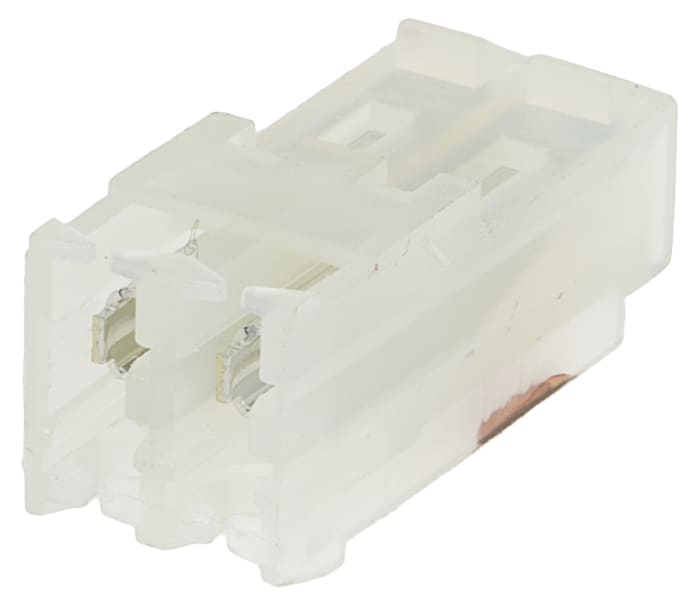

TE Connectivity MTA-156 IDC Closed End Connector Assemblies
MTA-156 IDC closed end connector receptacle assemblies preloaded with IDC contacts on a 3.96mm centerline that accept stranded discrete wire sizes from 18 to 26 AWG. These MTA-156 IDC closed end connectors are end to end stackable, have white nylon 6/6 UL94V-2 housings with moulded ribs to prevent reverse mating and are available with locking ramps and polarization tabs. The IDC socket contacts of these MTA-156 IDC closed end receptacle connectors are matte tin plated with the exception of stock number 863-8369 which has 0.00038μm gold plated contacts.
Part numbers X-640431-X have accept an 18 AWG discrete wire size
Part numbers X-640426-X have a locking ramp and accept an 18 AWG discrete wire size
Part numbers X-641148-X have a locking ramp and accept an 18 AWG discrete wire size (gold plated)
Part numbers X-640428-X have a locking ramp and accept an 22 AWG discrete wire size
Part numbers X-640429-X have a locking ramp and accept an 24 AWG discrete wire size
Part numbers X-640427-X have a locking ramp and accept a 20 AWG discrete wire size
Part numbers X-643817-X have a locking ramp and polarization tabs and accept an 18 AWG discrete wire size
Part numbers X-643818-X have a locking ramp and polarization tabs and accept a 20 AWG discrete wire size
Part numbers X-643819-X have a locking ramp and polarization tabs and accept a 22 AWG discrete wire size
TE Connectivity MTA-156 3.96mm Interconnect System
MTA-156 (Mass Termination Assembly) 3.96 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTA-156 connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTA-156 IDC connectors can be quickly assembled to 26 AWG to 18 AWG discrete wire or ribbon cable. The MTA-156 connector system consists of female IDC connectors and PCB headers. The housings of the IDC connectors are colour coded according to wire size
€ 1,80
€ 0,36 Buc. (Intr-un pachet de 5) (fara TVA)
€ 2,14
€ 0,428 Buc. (Intr-un pachet de 5) (cu TVA)
Standard
5
€ 1,80
€ 0,36 Buc. (Intr-un pachet de 5) (fara TVA)
€ 2,14
€ 0,428 Buc. (Intr-un pachet de 5) (cu TVA)
Standard
5
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
Cantitate | Pret unitar | Per Pachet |
---|---|---|
5 - 45 | € 0,36 | € 1,80 |
50 - 95 | € 0,31 | € 1,55 |
100 - 245 | € 0,25 | € 1,25 |
250 - 995 | € 0,21 | € 1,05 |
1000+ | € 0,18 | € 0,90 |
