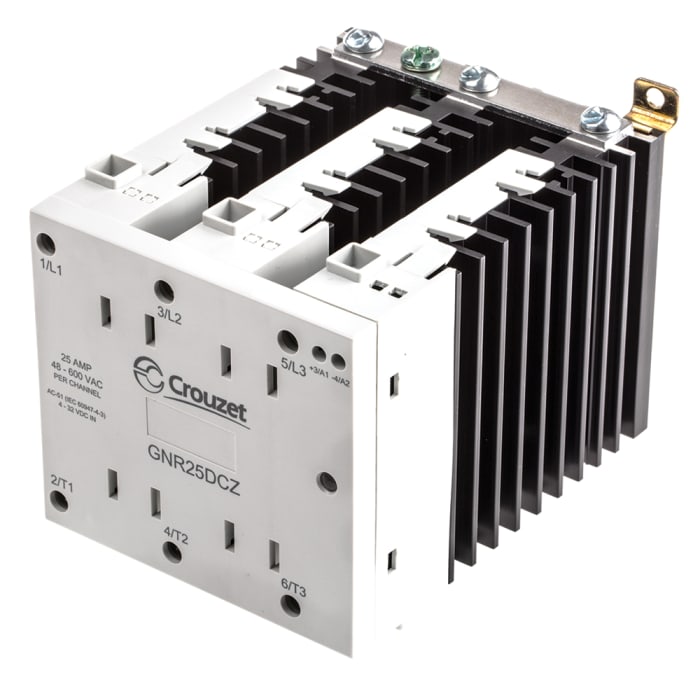

Sensata Crydom GNR 90 Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control

Nr. stoc RS: 170-7345Producator: Sensata / CrydomCod de producator: GNR25DCZ
brand-logo

Documente tehnice

Specificatii

Maximum Load Current

25 A rms

Timp montare

DIN Rail

Maximum Load Voltage

600 V rms

Minimum Load Voltage

48 V rms

Maximum Control Voltage

32 V dc

Minimum Control Voltage

4 V dc

Switching Type

Zero Cross

Control Voltage Range

4 → 32 V dc

Minimum Load Current

0.1 A rms

Numar poli

1

Tip terminal

Screw

Output Device

Triac

Relay Type

Solid State Relay

Serie

GNR 90

Maximum Turn On Time

1/2ms

Load Voltage Range

4 → 32V dc

Dimensiuni

90 x 123.4 x 97mm

Temperatura minima de lucru

-20°C

Temperatura de lucru

-20 → +80°C

Inaltime

97mm

Capacitate

8pF

Adancime

123.4mm

Temperatura maxima de lucru

+80°C

Off State Leakage Current

0.25mArms

Lungime

90mm

Caracteristici speciale

Direct Bond Copper (DBC) Substrate, LED Input Status Indicator

Standarde

CE, CSA, UL

Tara de origine

Mexico

S-ar putea să te intereseze

Informatii indisponibile despre stoc

Incercati din nou mai tarziu

Informatii indisponibile despre stoc

€ 437,48

Buc. (fara TVA)

€ 520,60

Buc. (cu TVA)

Sensata Crydom GNR 90 Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control

€ 437,48

Buc. (fara TVA)

€ 520,60

Buc. (cu TVA)

Sensata Crydom GNR 90 Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control
Informatii indisponibile despre stoc

Cumpara in pachete mari

CantitatePret unitar
1 - 4€ 437,48
5 - 9€ 401,78
10 - 24€ 378,12
25 - 49€ 354,83
50+€ 331,95
