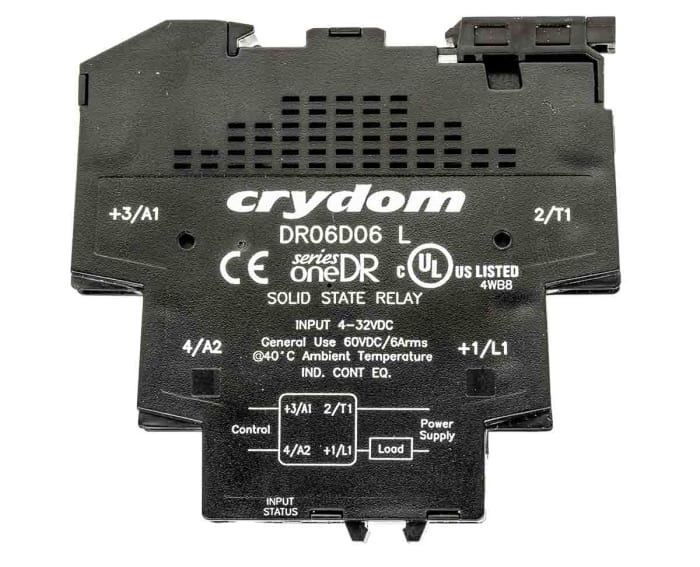

Sensata Crydom DR Series Solid State Interface Relay, 32 V dc Control, 6 A dc Load, DIN Rail Mount
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
Sensata / CrydomMaximum Control Voltage
32 V dc
Maximum Load Current
6 A dc
Timp montare
DIN Rail
Maximum Load Voltage
60 V ac
Minimum Control Voltage
4 V dc
Control Voltage Range
4 → 32 V dc
Switching Type
Zero Voltage Turn-On
Load Voltage Range
1 → 60V dc
Minimum Load Voltage
1 V ac
Tip terminal
Screw
Inaltime
83.7mm
Lungime
87.6mm
Minimum Load Current
0.15 A rms
Serie
DR
Adancime
11mm
Output Device
Triac
Off State Leakage Current
0.1 mA
Maximum Turn On Time
1/2 cycle
Caracteristici speciale
Fits Standard 35mm DIN-RAIL, LED Input Status Indicator
Standarde
ATEX
Temperatura maxima de lucru
+80°C
Dimensiuni
87.6 x 11 x 83.7mm
Temperatura minima de lucru
-30°C
Capacitate
10pF
Temperatura de lucru
-30 → +80°C
Manufacturer Part No.
DR06D06X
Tara de origine
Mexico
Detalii produs
DIN Rail Mount DR Series Solid State Relays
The SeriesOne DR solid state relays are UL approved for both the ANSI/ISA Class 1 division 2 requirements and ATEX 95 Equipment Directive 94/9/EC ratings. This range of solid state relays have an existing UL 58 rating and European Union EMC plus low voltage directives. The SeriesOne relays can be used in hazardous environments and locations for example, oil and gas exploration, refining and distribution. The other challenging applications available are for the control of heating, lighting, motion, power and many other electrical loads.
Approvals
ATEX
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations
DC Switching
Informatii despre stoc temporar indisponibile
€ 75,79
€ 75,79 Buc. (fara TVA)
€ 91,71
€ 91,71 Buc. (cu TVA)
1
€ 75,79
€ 75,79 Buc. (fara TVA)
€ 91,71
€ 91,71 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 75,79 |
| 5 - 9 | € 71,30 |
| 10 - 24 | € 66,92 |
| 25 - 49 | € 62,59 |
| 50+ | € 58,33 |
