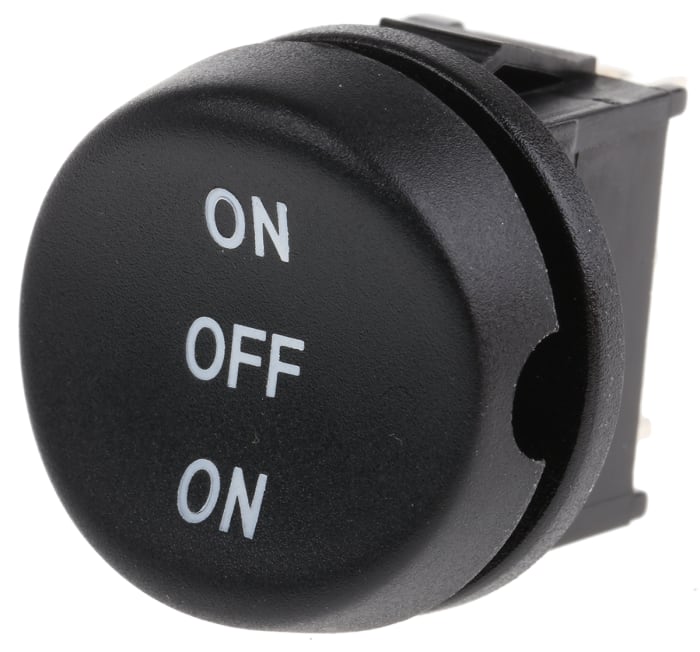

RS PRO SPDT, On-Off-On Rocker Switch Panel Mount
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
RS ProConfigurare contact
SPDT
Functionare comutator
On-Off-On
Panel Cut Out Width
19.8mm
Panel Cut Out Height
13mm
Panel Cut Out Diameter
22.5mm
Contact Current Rating
10 A @ 125 V ac
Iluminat
No
Culoare actuator
Black
Timp montare
Panel Mount
Tip terminal
Quick Connect
AC Voltage Rating
125 V, 250V
Actuator Shape
Round
Panel Cut Out Size
13 x 19.8mm
Case Material
Nylon
Material de contact
Silver Plated Brass
Temperatura minima de lucru
-20°C
Contact Resistance
50mΩ
Temperatura de lucru
-20 → +85°C
Temperatura maxima de lucru
+85°C
€ 5,64
€ 5,64 Buc. (fara TVA)
€ 6,82
€ 6,82 Buc. (cu TVA)
1
€ 5,64
€ 5,64 Buc. (fara TVA)
€ 6,82
€ 6,82 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
Informatii despre stoc temporar indisponibile
| Cantitate | Pret unitar |
|---|---|
| 1 - 24 | € 5,64 |
| 25 - 49 | € 4,91 |
| 50 - 99 | € 4,69 |
| 100+ | € 4,28 |
