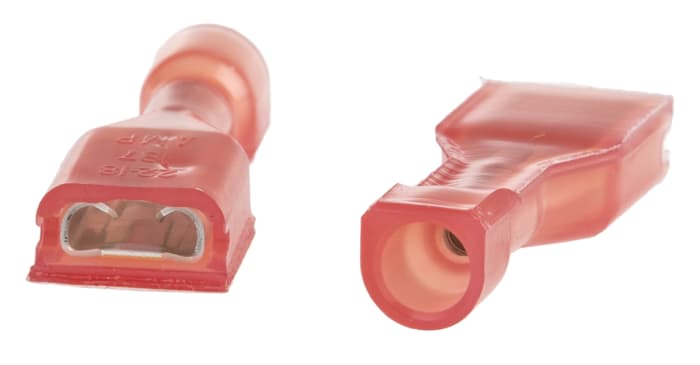

RS PRO Red Insulated Female Spade Connector, Double Crimp, 4.8 x 0.8mm Tab Size, 0.5mm² to 1.5mm²
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
RS ProTip produs
Double Crimp
Spade Connector Type
Receptacle
Subtip
Female
Minimum Wire Size mm²
0.5mm²
Maximum Wire Size mm²
1.5mm²
Tab Size
4.8 x 0.8mm
Insulation
Insulated
Maximum Wire Size AWG
16AWG
Minimum Wire Size AWG
22AWG
Terminal
Crimp
Culoare
Red
Material de contact
Brass
Placa contact
Tin
Insulation Material
Vinyl
Lungime totala
19mm
Shrouded/Unshrouded
Shrouded
Tara de origine
Taiwan, Province Of China
Detalii produs
RS PRO Fully Insulated Double Crimp Receptacles
From RS PRO a high-quality fully insulated crimp receptacle terminal sometimes known as a female quick disconnect. Female crimp receptacles are a type of electrical wiring connector which, when mated with a male tab connector (or male quick disconnect), provide a fast and reliable interconnect between two wires. The body of the connector is made from tin plated brass and features an additional internal copper sleeve. This copper sleeve strengthens the barrel and provides a robust and secure crimp. The sleeve also protects the wire against stress and high vibration. The main feature of this female receptacle is the insulation which covers the entire length of the connector body. This insulation provides protection against electric shock and acts as a ’mini’ enclosure to protect the connection from dirt, grease, liquids and other contaminants when mated.
Approvals
UL Listed
€ 32,36
€ 32,36 1 Pack of 100 (fara TVA)
€ 39,16
€ 39,16 1 Pack of 100 (cu TVA)
1
€ 32,36
€ 32,36 1 Pack of 100 (fara TVA)
€ 39,16
€ 39,16 1 Pack of 100 (cu TVA)
Informatii despre stoc temporar indisponibile
1
Informatii despre stoc temporar indisponibile
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 32,36 |
| 5 - 24 | € 28,89 |
| 25 - 49 | € 25,43 |
| 50+ | € 22,01 |
