RS PRO Rectangular Proximity Switch, CO, 125V, 400mA
Documente tehnice
Specificatii
Marca
RS ProSwitch Shape
Rectangular
Normal State Configuration
CO
Tip terminal
Wire Lead
Maximum Current
400mA
Maximum AC Voltage
125V
Maximum DC Voltage
175V
Contact Resistance
120mΩ
Total Length
328.5mm
Lungime
28.5mm
Adancime
6.4mm
Latime
19mm
Temperatura maxima de lucru
+105°C
Dimensiuni
28.5 x 19 x 6.4mm
Frecventa minima de auto-rezonanta
-40°C
Distrelec Product Id
30395454
Tara de origine
United Kingdom
Detalii produs

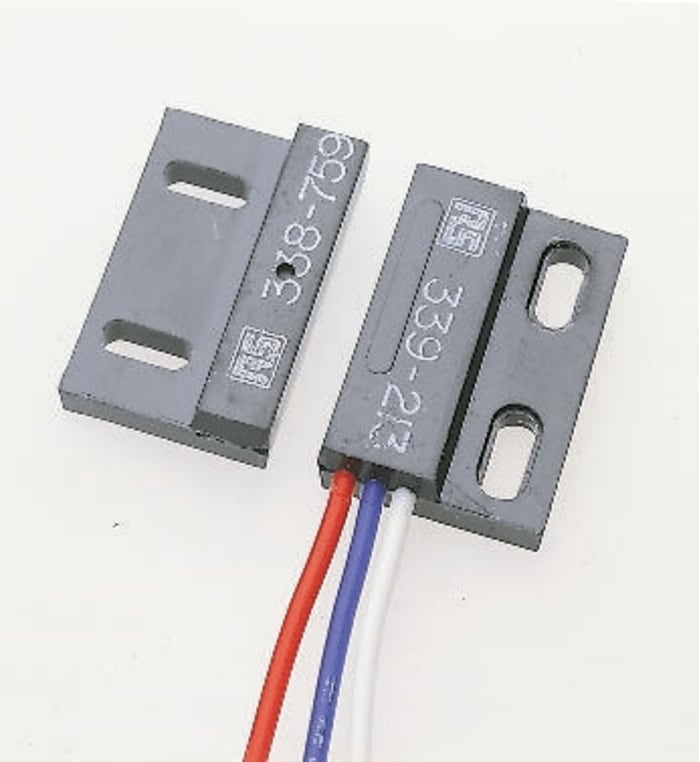

RS PRO Rectangular Proximity Reed Switches
RS PRO range of rectangular magnetic proximity reed switches which provide a simple and cost-effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches.
Options include:
811-0748 - Proximity Switch - Reed based changeover contacts
811-0736 - Proximity Switch - Normally Open Contacts
811-0745 - Rectangular Encapsulated Magnet
Reed switches are a type of industrial switch and are used to interrupt or redirect the flow of electricity within a circuit. Reed switches are composed of two ferrous reeds in a small glass casing. The switches are magnetised and move when the magnetic field is moved towards the switch. A reed switch can turn on or off when a magnetic field is nearby.
RS PRO have a great range of industrial magnetic proximity switches and magnetic proximity sensors to suit many different applications.
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 11,04
Buc. (fara TVA)
€ 13,14
Buc. (cu TVA)
1
€ 11,04
Buc. (fara TVA)
€ 13,14
Buc. (cu TVA)
1
Cumpara in pachete mari
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 11,04 |
| 5 - 9 | € 10,24 |
| 10+ | € 9,70 |
