P.M.A 3RS7020 Series Signal Conditioner, Digital, Signal Input, Universal Output, 18 → 30 V ac, 18 → 31V
Documente tehnice
Specificatii
Marca
P.M.ATip modul
Transmitter
Input Signal Type
Digital, Signal
Output Signal Type
Universal
Input Range
5V
Output Range
0 → 10 V, 4 → 20mA
Tensiunea de alimentare
18 → 30 V ac, 18 → 31V dc
Timp montare
DIN Rail Mount
Temperatura de lucru
-20 → +60°C
Serie
3RS7020
Temperatura minima de lucru
-20°C
Temperatura maxima de lucru
+60°C
Tara de origine
United Kingdom
Detalii produs

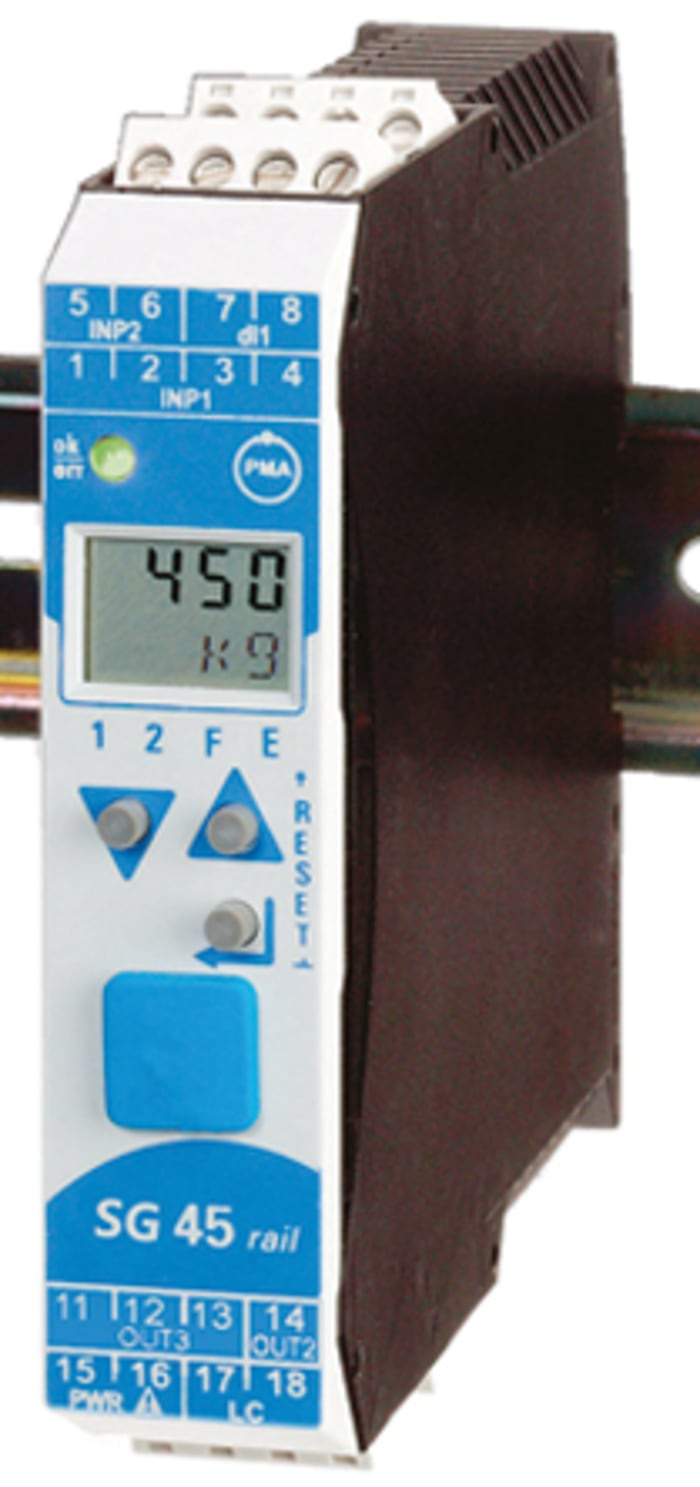

PMA SG 45 Fast Signal Load Cell Transmitter
The UNIFLEX SG 45 is a transmitter for processing and monitoring input signals form strain gauges, load cells, melt pressure sensors, and resistance bridges. It can be used in practically all industrial applications involving the precise measurement, indication, and processing of force, weight, or melt pressure. Moreover, it permits operation and parameter adjustment via keys in the front panel.
Alternatively, the UNIFLEX SG 45 can be operated, parameterized, and calibrated by means of a PC and a connection adapter. This also permits the adjusted parameters and configuration to be documented during operation. The simple zero setting function ensures high operating convenience.
The SG 45 is suitable for use in applications involving measurement, scaling, and isolation of electrical signals and is commonly used by the following industries: chemical industry, foodstuffs & beverage industries, concrete, asphalt, building industry and lime and clay.
PMA Temperature Transmitters
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 680,94
€ 680,94 Buc. (fara TVA)
€ 810,32
€ 810,32 Buc. (cu TVA)
1
€ 680,94
€ 680,94 Buc. (fara TVA)
€ 810,32
€ 810,32 Buc. (cu TVA)
1
