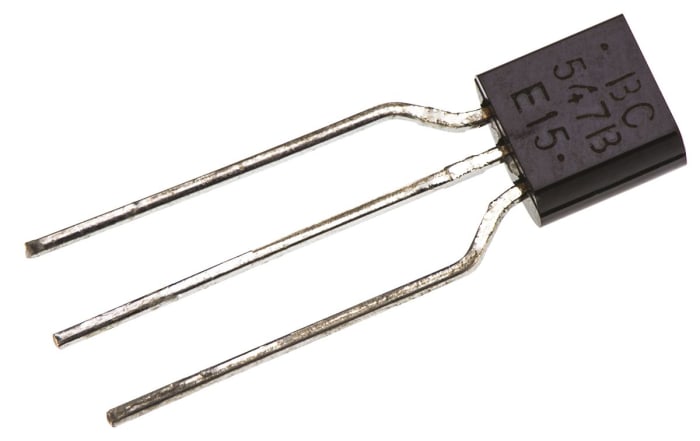

onsemi BC547BTA NPN Transistor, 100 mA, 45 V, 3-Pin TO-92

Name: onsemi BC547BTA NPN Transistor, 100 mA, 45 V, 3-Pin TO-92
Brand: onsemi
SKU: 6711113P
Availability: LimitedAvailability

Nr. stoc RS: 671-1113PProducator: onsemiCod de producator: BC547BTA

Vezi toate produsele din Tranzistoare bipolare

Documente tehnice

Specificatii

Marca

onsemi

Transistor Type

NPN

Maximum DC Collector Current

100 mA

Maximum Collector Emitter Voltage

45 V

Tip pachet

TO-92

Montare

Through Hole

Maximum Power Dissipation

500 mW

Minimum DC Current Gain

200, 420

Transistor Configuration

Single

Maximum Collector Base Voltage

50 V

Maximum Emitter Base Voltage

6 V

Maximum Operating Frequency

300 MHz

Numar pini

Number of Elements per Chip

Temperatura maxima de lucru

+150 °C

Dimensiuni

5.33 x 5.2 x 4.19mm

Detalii produs

Small Signal NPN Transistors, 40V to 50V, Fairchild Semiconductor

Bipolar Transistors, Fairchild Semiconductor

Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.

S-ar putea să te intereseze

onsemi BC547BZL1G NPN Bipolar Transistor, 100 mA, 45 V, 3-Pin TO-92Producator: ON Semiconductor

P.O.A.Each (Supplied as a Tape) (fara TVA)

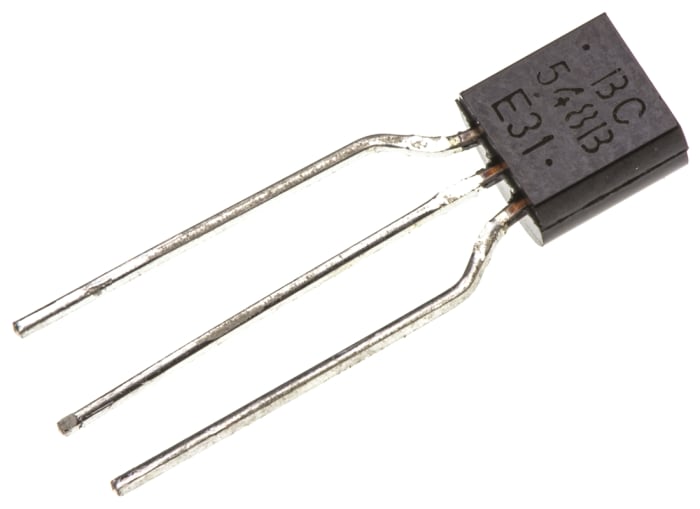

onsemi BC548BG NPN Bipolar Transistor, 100 mA, 30 V, 3-Pin TO-92Producator: ON Semiconductor
