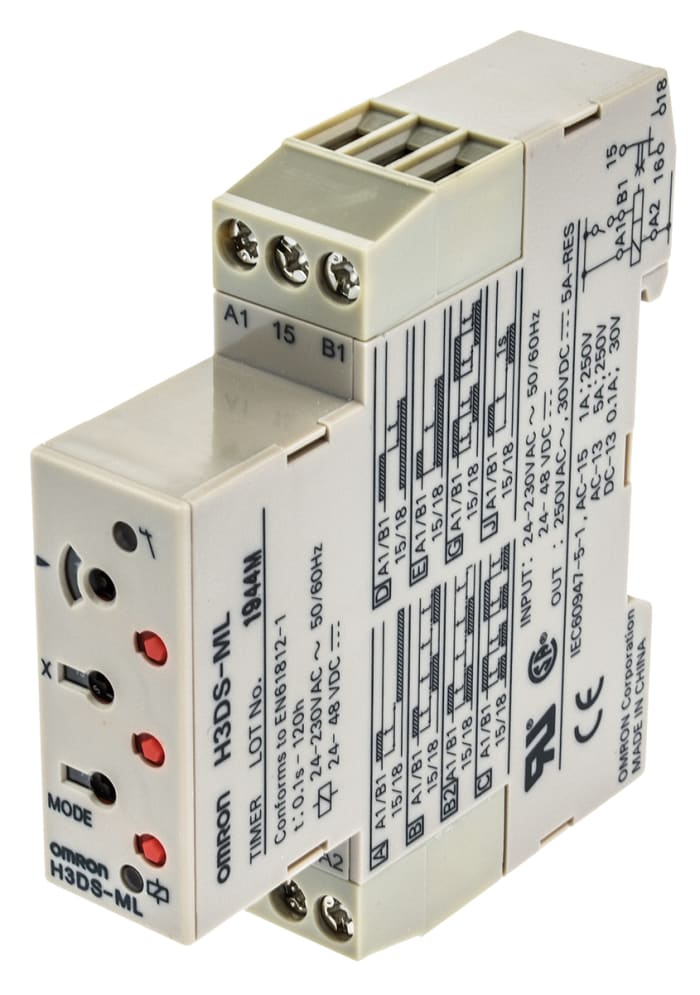

Omron H3DS Series DIN Rail Mount Timer Relay, 24 → 230V ac, 1-Contact, 0.1 s to 120 h, SPDT
Documente tehnice
Specificatii
Brand
OmronSupply Voltage
24 → 230V ac
Mounting Type
DIN Rail
Mode of Operation
Flicker ON Start, Interval, ON Delay, One Shot
Time Range
0.1 s to 120 h
Number of Contacts
1
Number of Timer Functions
Multi Function
Contact Configuration
SPDT
Time Increment
Hours, Seconds
Maximum Current
5A
Maximum Voltage
30 V dc, 250V ac
Switch Configuration
SPDT
Terminal Type
Screw
Power Supply
External
Width
17.5mm
Maximum Operating Temperature
+55°C
Series
H3DS
Depth
73mm
Length
80mm
Time Delay
0.1s
Minimum Operating Temperature
-10°C
€ 58,15
€ 58,15 Buc. (fara TVA)
€ 69,20
€ 69,20 Buc. (cu TVA)
1
€ 58,15
€ 58,15 Buc. (fara TVA)
€ 69,20
€ 69,20 Buc. (cu TVA)
1
Informatii despre stoc temporar indisponibile
Incercati din nou mai tarziu
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 58,15 |
| 5 - 9 | € 55,29 |
| 10+ | € 53,08 |
