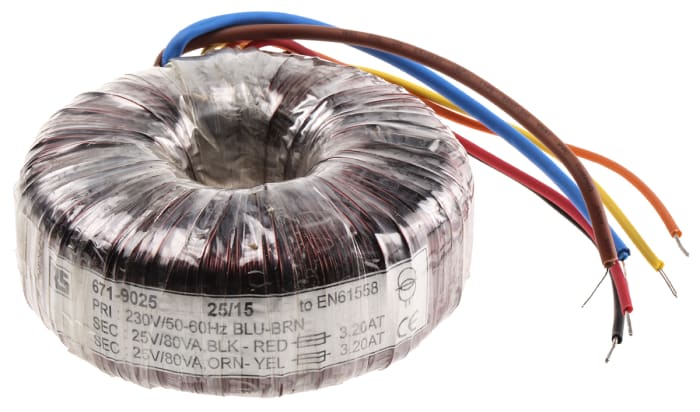

Nuvotem Talema 230V ac, 2 x 25V ac Toroidal Transformer, 160VA 2 Output
Documente tehnice
Specificatii
Marca
Nuvotem TalemaPrimary Voltage Rating
230V ac
Secondary Voltage Rating
2 x 25V ac
Putere
160VA
Numar iesiri
2
Secondary Current
3.2A
Inaltime
42mm
Greutate
1.5kg
Diametru
105mm
Dimensiuni
105 (Dia.) x 42mm
Maximum Operating Frequency
450Hz
Terminal
Copper Conductor Termination Wire
Temperatura minima
0°C
Isolation Voltage
4.5kV ac
Maximum Temperature
+120°C
Tara de origine
Czech Republic
Detalii produs
Open Style with Leads, 15VA to 1000VA
High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Supplied with
Full mounting kit
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Standards
UL 506; EN 61558
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 102,78
Buc. (fara TVA)
€ 122,31
Buc. (cu TVA)
1
€ 102,78
Buc. (fara TVA)
€ 122,31
Buc. (cu TVA)
1
Cumpara in pachete mari
| Cantitate | Pret unitar |
|---|---|
| 1 - 9 | € 102,78 |
| 10 - 24 | € 93,92 |
| 25 - 49 | € 83,68 |
| 50 - 74 | € 73,60 |
| 75+ | € 63,71 |
Documente tehnice
Specificatii
Marca
Nuvotem TalemaPrimary Voltage Rating
230V ac
Secondary Voltage Rating
2 x 25V ac
Putere
160VA
Numar iesiri
2
Secondary Current
3.2A
Inaltime
42mm
Greutate
1.5kg
Diametru
105mm
Dimensiuni
105 (Dia.) x 42mm
Maximum Operating Frequency
450Hz
Terminal
Copper Conductor Termination Wire
Temperatura minima
0°C
Isolation Voltage
4.5kV ac
Maximum Temperature
+120°C
Tara de origine
Czech Republic
Detalii produs
Open Style with Leads, 15VA to 1000VA
High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.
Supplied with
Full mounting kit
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Standards
UL 506; EN 61558
