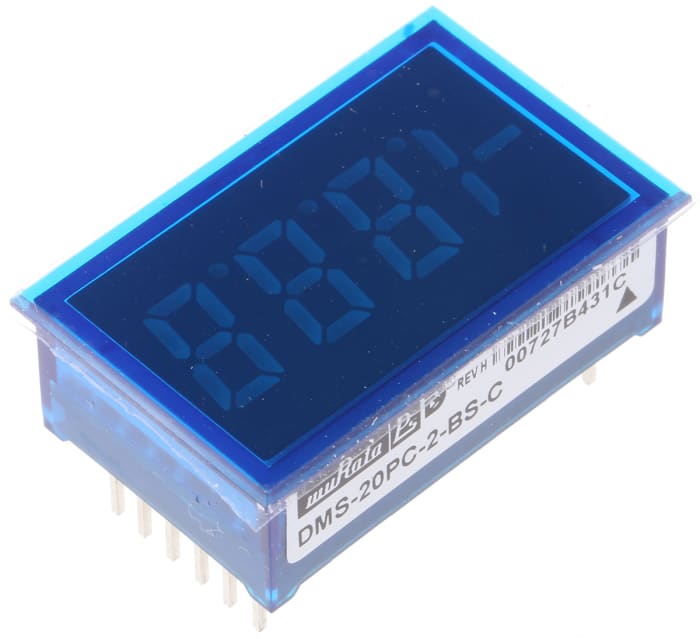

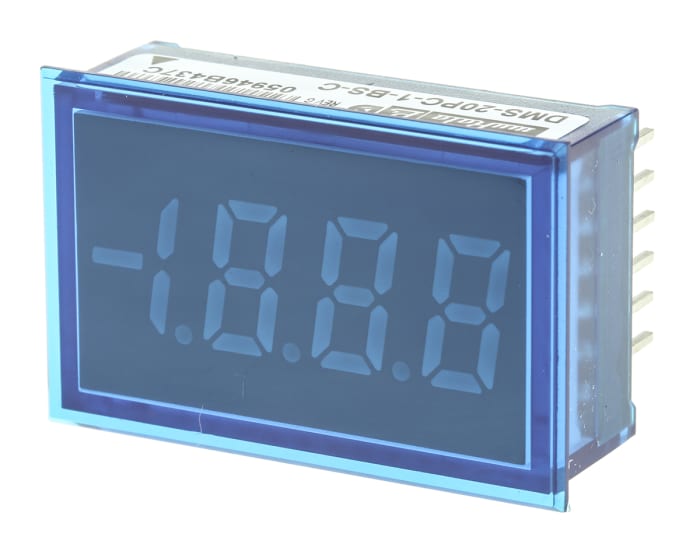

Murata Power Solutions DMS-20PC Series Digital Voltmeter DC, LED Display 3.5-Digits ±3 %
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Current Type
DC
Number Of Digits
3.5
Tip afisare
LED
Cutout Height
21.29mm
Cutout Width
33.93mm
Adancime
11.05mm
Digit Height
9.4 mm
Meter Accuracy
±3 %
Analogue Effect
Digits Only
Temperatura minima
0°C
Meter Type
Voltmeter
Maximum Temperature
+60°C
Measurement Range
-200 → +200V
Serie
DMS-20PC
Approvals
RoHS Compliant
Tara de origine
China
Detalii produs
DMS-20PC - Subminiature Digital Panel Voltmeters
The digital panel voltmeter DMS-20PC series with a 3.5 digit LED Display combine a precision A/D converter; a factory-trimmed, highly stable, voltage reference; and a large 9.4 mm, easy-to-read LED display in a single package that is only slightly larger than the display itself.
These low-cost meters are fully self-contained and fully functional. Their subminiature epoxy-encapsulated cases incorporate built-in colour filters and bezels; are moisture and vibration proof; and function well in the harshest environments.
Murata Power Solutions Series
P.O.A.
1
P.O.A.
Informatii despre stoc temporar indisponibile
1
Informatii despre stoc temporar indisponibile
