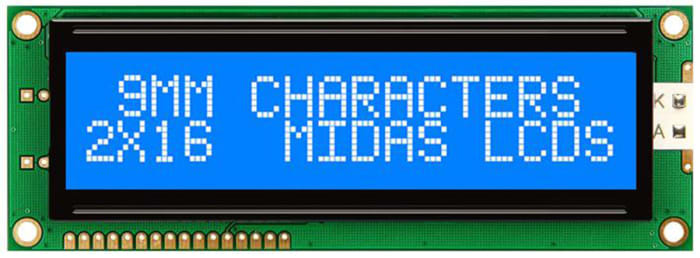

Midas MC21609AB6W-BNMLW-V2 AB Alphanumeric LED LCD Monochrome Display, Blue on White, 2 x 16
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
MidasTip afisare
Alphanumeric
Product Type
LCD Monochrome Display
Character Matrix
2 x 16
Dimensiune zona vizuala
66 x 16 mm
Interfata
8-Bit
Illumination Colour
Blue
External Depth
13.5mm
Background Colour
White
Backlight Type
LED
Temperatura minima de lucru
-20°C
Character Height
5.2mm
External Height
44mm
Temperatura maxima de lucru
70°C
Character Width
3mm
External Width
84mm
Standards/Approvals
RoHS
Serie
AB
Tara de origine
China
Detalii produs
Midas Character COB LCD Displays
This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.
Midas Alphanumeric Displays
Informatii despre stoc temporar indisponibile
€ 21,66
€ 21,66 Buc. (fara TVA)
€ 26,21
€ 26,21 Buc. (cu TVA)
1
€ 21,66
€ 21,66 Buc. (fara TVA)
€ 26,21
€ 26,21 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 21,66 |
| 5 - 9 | € 19,30 |
| 10+ | € 18,06 |
