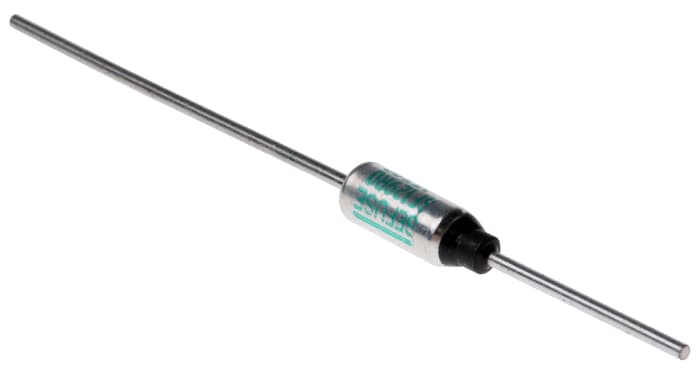

Limitor Thermal Fuse +133°C 10 A, 250V ac
Documente tehnice
Specificatii
Marca
LimitorFunctie
+133°C
Holding Temperature
+118°C
Maximum Current
10 A
Tensiune nominala
250V ac
Lead Orientation
Axial
Body Diameter
4.2mm
Body Height
11mm
Wire Diameter
1mm
Wire Length
55mm
Tara de origine
Japan
Detalii produs
SF Series Thermal Fuse
From Limitor, the SF Series of thermal cutoff limiters have a metallic body and feature a high Tm rating and quick responsiveness. These PCB non-resettable thermal fuses are suitable for use with standard single phase power supplies 250V (230V typical).
Approvals
VDE, SEV, UL
PCB Wire Ended
Thermal fuses protect equipment against fire or thermal damage due to overload or overcharge. Suitable for use with standard single phase supplies up to 250V (230V typical). Temperature gradient: 1°C per minute.
