Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 3 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 16 AWG
Documente tehnice
Specificatii
Marca
LappSerie
ÖLFLEX CLASSIC 115 CY
Number of Cores
3
Cross Sectional Area
1.5 mm²
Screened/Unscreened
Screened
Lungime
50m
Control Cable Type
CY
Culoare invelis
Grey
CPR Certification
Eca
American Wire Gauge
16 AWG
Diametru exterior
7.5mm
Sheath Material
PVC
Standarde
CE
Tensiune
300/500 V
Screen Type
Tinned Copper Braid
Temperatura maxima de lucru
+80°C
Conductor Resistance
26 Ω/km
Curent nominal
18 A
Rezistenta la foc
Flame Retardant
Filler Material
Non-Wicking Filler
Core Strands
30/0.25 mm
Minimum Bend Radius
Fixed - 6 x D Occasional Flexing - 20 x D
Conductor Material
Copper
Earth Cable
Yes
Insulation material
PVC
Temperatura minima de lucru
-40°C
Oil Resistant
Yes
Tara de origine
Germany
Detalii produs

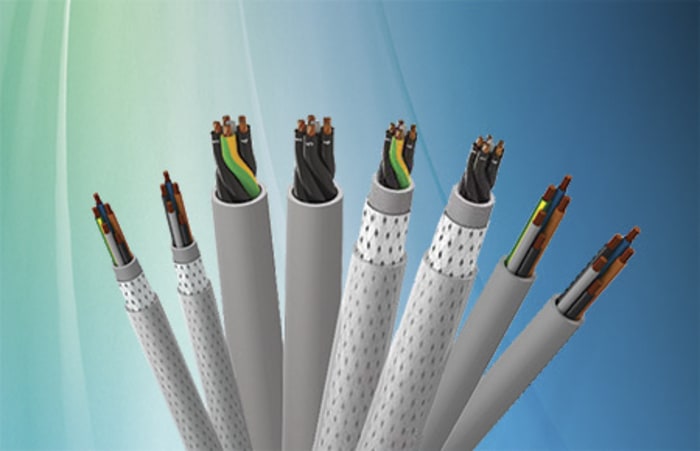

Ölflex® Classic 115 CY
From Lapp, this Olflex Classic 115 CY control cable is shielded for EMC compliance. The cable is thin, light and flexible, making it suitable for a variety of applications.
As well as being resistant to interference signals, the cable also has oil and chemical resistance, meaning it is ideal for use in challenging industrial environments.
The Olflex Classic 115 CY comprises of fine-wire copper strands, with a PVC insulation and sheath that is flame retardant. It also features a small diameter for installations where space saving is a concern.
Features and Benefits
• Tough and flexible and resistant to most oils and chemicals
• Space saving design
• Covered in an insulating foil
• Outer sheathing made from special PVC-based compound
• Flame-retardant to IEC 60332-1-2
• Low transfer impedance
Applications
This Olflex Classic cable is highly versatile, with resistances that make it ideal for use in;
• Industrial Machines
• Rail vehicles
• HVAC systems
Accessories
Lapp Olflex Classic cable should only be used with accessories that meet its capabilities, and as such provide a series of cable glands that are EMC compliant.
• 560-701 is an M25 Skintop Cable Gland with EMC Brush
• 560-713 is an M32 Skintop Cable Gland with EMC Brush
• 560-694 is an M40 Skintop Cable Gland with EMC Brush
Standards
This cable confirms to ECD 73/23/EEC (low voltage directive).
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 210,63
1 Reel of 50 Metres (fara TVA)
€ 250,65
1 Reel of 50 Metres (cu TVA)
1
€ 210,63
1 Reel of 50 Metres (fara TVA)
€ 250,65
1 Reel of 50 Metres (cu TVA)
1
