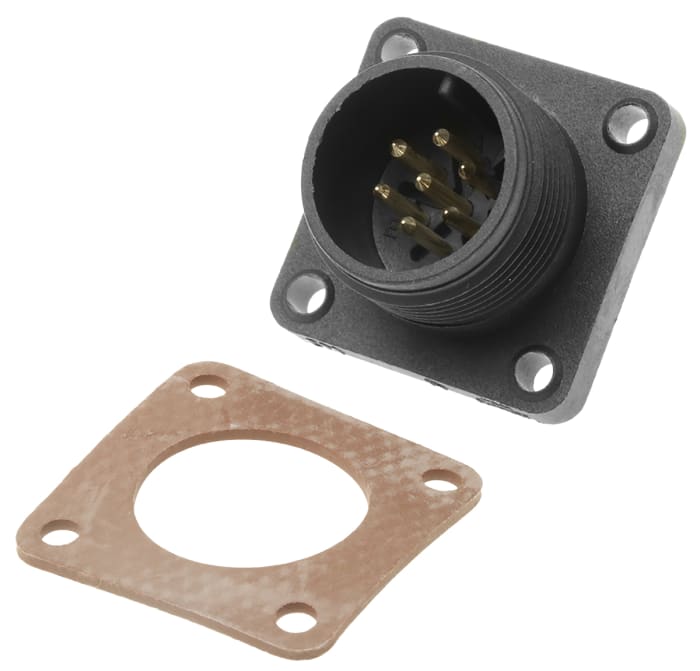

Hirschmann 7 Way Panel Mount MIL Spec Circular Connector, Pin Contacts,Shell Size 14, Screw Coupling, MIL-DTL-5015
Documente tehnice
Specificatii
Marca
HirschmannNumar contacte
7
Contact Gender
Male
Curent nominal
10A
Tensiune nominala
50 V ac/dc
Shell Size
14
Montare
Panel Mount
Military Standard
MIL-DTL-5015
Terminal
Solder
Mating Type
Screw Coupling
Body Orientation
Straight
Temperatura maxima de lucru
+90°C
Placa contact
Silver
Frecventa minima de auto-rezonanta
-40°C
Tara de origine
Germany
Detalii produs
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
Hirschmann CA series connectors – Protection Class IP67
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
€ 9,87
Buc. (Intr-o punga de 200) (fara TVA)
€ 11,745
Buc. (Intr-o punga de 200) (cu TVA)
200
€ 9,87
Buc. (Intr-o punga de 200) (fara TVA)
€ 11,745
Buc. (Intr-o punga de 200) (cu TVA)
200
