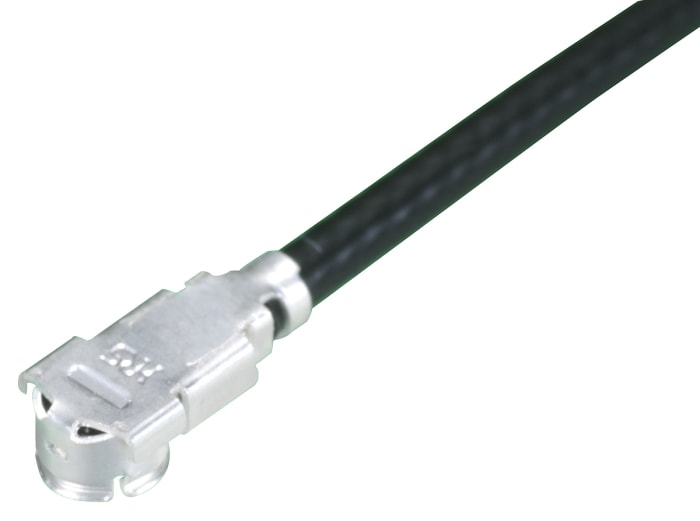

Hirose U.FL Series Series Female U.FL to Female U.FL, 100mm, Ultra-Fine Coaxial, Terminated50 Ω
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
HiroseTerminated/Unterminated
Terminated
Conector 1
U.FL
Coaxial Type
Ultra-Fine
Conector 2
U.FL
Tip conector 1
Female
Tip conector 2
Female
Diametru exterior
1.13mm
Characteristic Impedance
50 Ω
Attenuation
5.44dB/m
Lungime
100mm
Curent nominal
10 mA
Culoare invelis
Grey
Conductor Strand Type
Stranded
Sheath Material
FEP
Shielding
Tin Plated Annealed Copper Wire
Insulation material
PBT
Conductor Material
Silvered Plated Copper
Dimensiune
32 AWG
Temperatura minima de lucru
-40°C
Temperatura maxima de lucru
+90°C
Standarde
IEC 61249-2-21
Temperatura de lucru
-40 → +90 °C
Serie
U.FL Series
Core Strands
7/0.08
Detalii produs
Hirose U.FL Series Ultra Small Coaxial Cable Assemblies
U.FL cable assemblies consisting of a coaxial cable terminated with an ultra small, lightweight U.FL plug. These U.FL plugs have a high frequency performance from DC to 6 GHz with a V.S.W.R of 1.3 to 1.5 max. This performance enables them to meet the frequency requirements of a wide range of miniature devices. The plugs are terminated with ultra fine coaxial cable with a 0.81 mm diameter for a secure and stable connection. A tactile click is produced when fully mated with the U.FL series receptacle connector confirming a complete electrical and mechanical connection. Heights of 1.9 mm, 2.3 mm and 2.4 mm can be achieved when mated. These U.FL cable assemblies are available as single ended or double ended and have various U.FL plug and cable sizes
