Fluke 115, TLK-225-1 Multimeter Kit, RSCAL

Fluke Multimeter Kit, Kit Contents Included - FLK-115/TLK-225-1

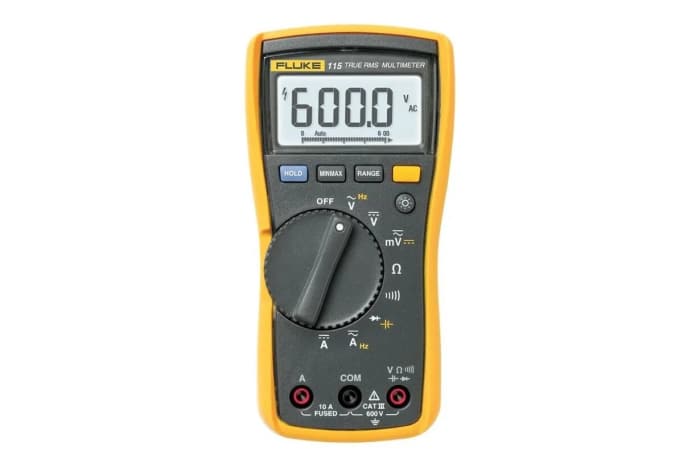

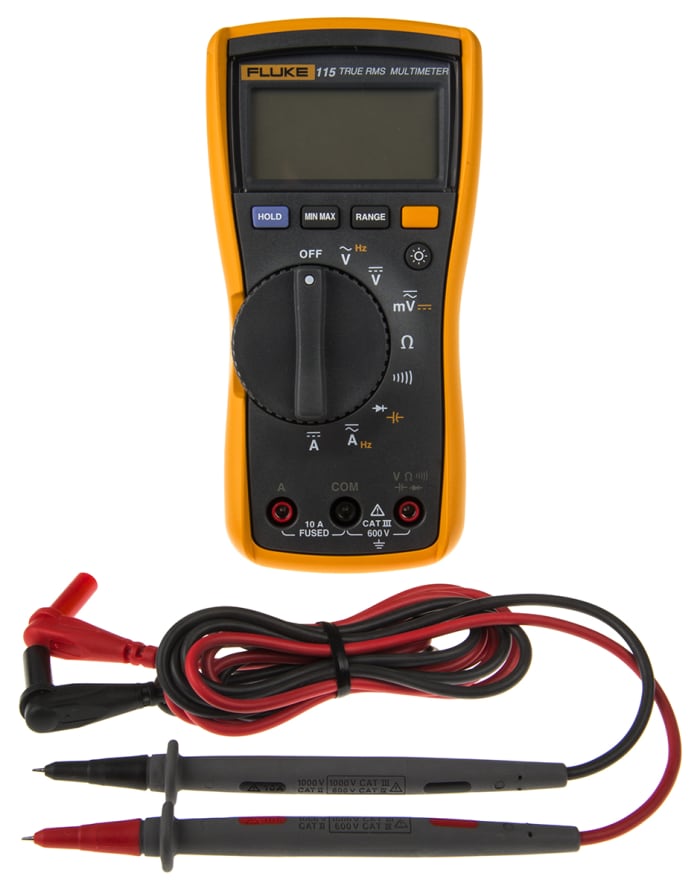

This multimeter kit combines a Compact true-rms handheld electrical multimeter Fluke 115 with a comprehensive TLK-225-1 test lead set compatible with Fluke, delivering a field-ready measurement solution for electrical and electronic diagnostics. Designed for one-handed operation, the kit suits technicians working in confined or poorly lit environments and includes leads, probes and a roll-up pouch for organised storage.

Features & Benefits

• True-rms measurement for accurate non-linear load readings
  10A range with 20A overload protection for 30 s
  Large white LED backlight for low-light tasks
  Min/Max/Average logging with elapsed time to track variations
  CAT III 600V safety rating for industrial site measurements
  6,000-count display with 33-segment bargraph for Rapid interpretation

**Applications**

• Suitable for electrical troubleshooting on industrial control panels
  Ideal for commissioning and servicing automation equipment
  Used for electronics fault finding on service benches
  Can be used for current and voltage checks on mechanical drives

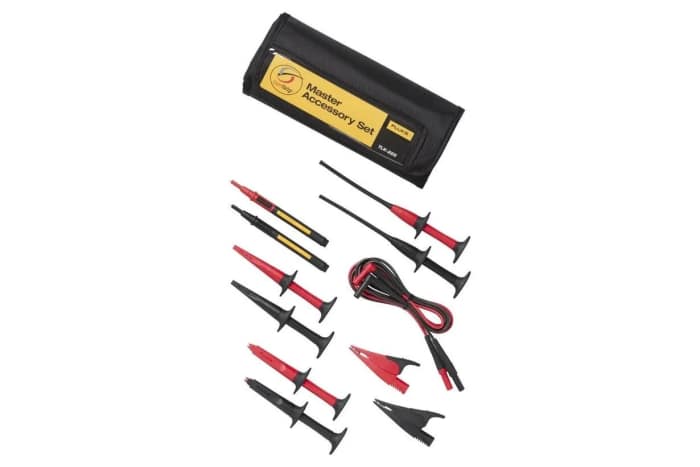

  Used with TLK-225 leads for field maintenance and inspections

What battery type does it use and how long does it typically last?

It runs on a 9V alkaline battery, providing around 400 hours of use without the backlight.

How do the continuity and diode tests behave on intermittent faults?

The continuity beeper responds under 20 Ω and senses opens or shorts of 500 μs or longer
the diode range displays up to 2.000V with 0.001V resolution.

What environmental limits affect its operation?

It operates between −10 °C and +50 °C and can be stored from −40 °C to +60 °C, with humidity tolerances specified in the calibration conditions.

What surge and input protection are provided for site use?

Surge protection meets 6 kV Peak per IEC 61010-1 at the CAT III 600V rating, and the A-input is protected by an 11 A 1000V fast fuse.

Notes

This kit can be bought separately with the Fluke 115 (616-1454) and the SureGrip TLK-225 (726-3649)
