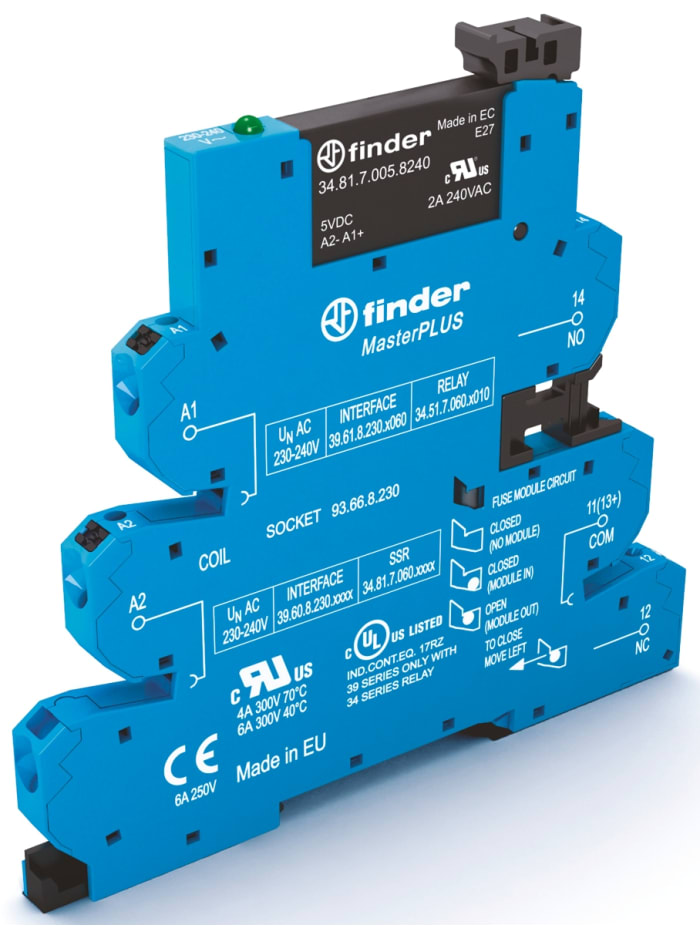

Finder Series 39 Series Solid State Interface Relay, 13.2 V dc Control, 6 A Load, DIN Rail Mount
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
FinderMaximum Control Voltage
13.2 V dc
Maximum Load Current
6 A
Timp montare
DIN Rail
Maximum Load Voltage
24 V dc
Minimum Control Voltage
9.6 V dc
Control Voltage Range
12 V dc
Switching Type
DC
Configurare contact
SPST
Load Voltage Range
1.5 → 24V dc
Minimum Load Voltage
1.5 V dc
Tip terminal
Screw
Serie
Series 39
Adancime
90.7mm
Minimum Load Current
1 mA
Inaltime
94.3mm
Lungime
6.2mm
Dimensiuni
85 x 6.2 x 87mm
Temperatura minima de lucru
-20°C
Package Style
Module
Temperatura maxima de lucru
+55°C
Off State Leakage Current
0.001 mA
Maximum Turn On Time
0.6 ms
Temperatura de lucru
-20 → +55°C
Manufacturer Part No.
39.30.7.012.9024
Tara de origine
Italy
Detalii produs
39 Series - SSR Screw Terminals
A range of solid state relay interface modules from the 39 series from Finder, these relays are silent with high speed switching and long electrical life.
€ 53,45
€ 53,45 Buc. (fara TVA)
€ 64,67
€ 64,67 Buc. (cu TVA)
1
€ 53,45
€ 53,45 Buc. (fara TVA)
€ 64,67
€ 64,67 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
Informatii despre stoc temporar indisponibile
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 53,45 |
| 5 - 9 | € 51,34 |
| 10+ | € 48,67 |
