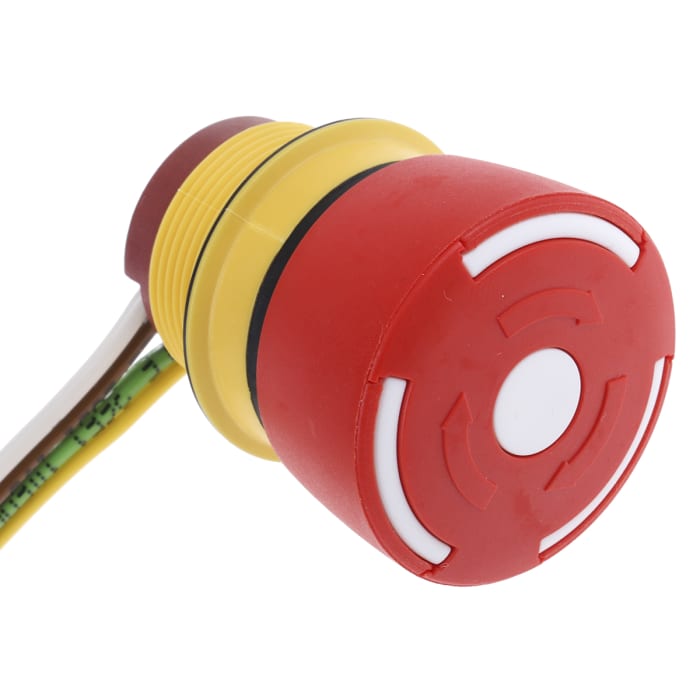

EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22.5mm Cutout, 1 NO + 1 NC, IP65
Documente tehnice
Specificatii
Marca
EAOMontare
Panel Mount
Cutout Diameter
22.5mm
Configurare contact
1 NO + 1 NC
Push Button Actuation
Twist Release
Iluminat
No
Dimensiune celula
84
Protectie IP
IP65
Culoare
Red
Tensiune nominala
240V ac, 250V dc
Pole and Throw Configuration
DPST
Push Button Material
Plastic
Push Button Material
Plastic
Culoare
Red
Dimensiune celula
84
Tara de origine
Switzerland
Detalii produs
Series 84 Low Profile Emergency Stop Switch
The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO
Approvals
UL Recognised
Standards
DIN EN ISO 13850
