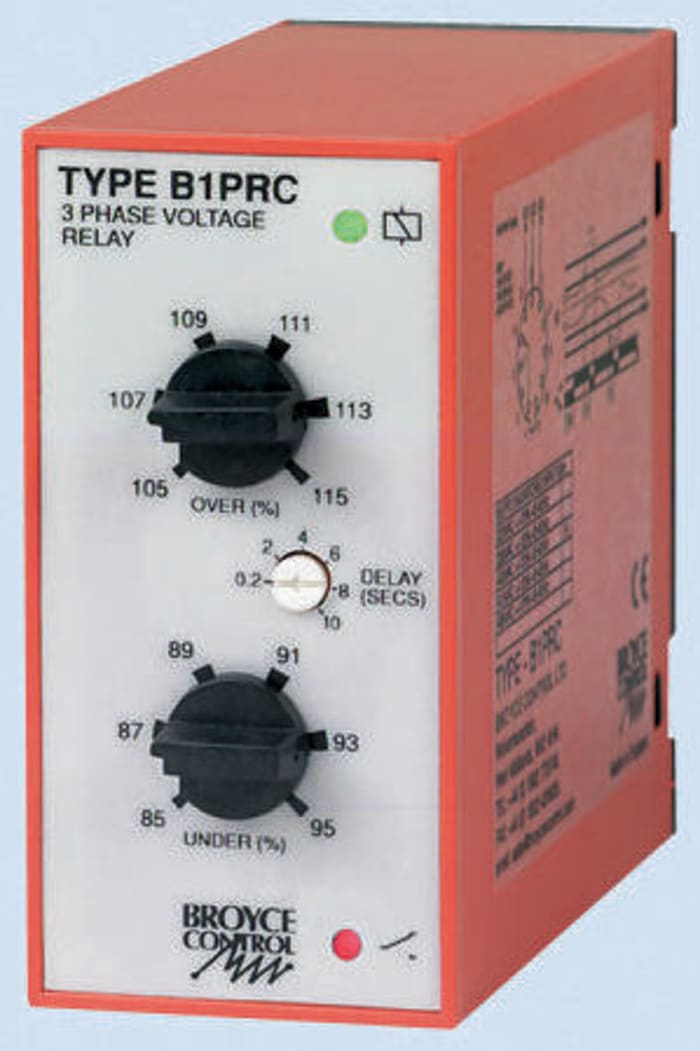

Broyce Control Phase, Voltage Monitoring Relay, 3 Phase, SPDT, DIN Rail
Documente tehnice
Specificatii
Marca
Broyce ControlMonitoring Application
Phase, Voltage
Faza electrica
3
Configurare contact
SPDT
Tensiune
Overvoltage, Undervoltage
Timp montare
DIN Rail
Phase Sensitivity
Phase Failure
Intarziere
0.2 → 10s
Frequency Sensing Range
48 → 63Hz
Serie
L
Inaltime
89mm
Lungime
66.5mm
Temperatura de lucru
+60°C
Tip terminal
Screw
Caracteristici speciale
Adjustment for Trip Level & Time Delay
Numar poli
1
Temperatura minima de lucru
-20°C
Latime
17.5mm
Temperatura maxima de lucru
+60°C
Dimensiuni
66.5 x 17.5 x 89mm
Current Range
Maximum of 8A
Tara de origine
United Kingdom
Detalii produs
LX Series - Three Phase Relays
L Series relay range of timers, control and three phase relays incorporate the latest technology and offer a wide range of user adjustable features.
Approvals
UL Certification
€ 110,66
€ 110,66 Buc. (fara TVA)
€ 131,69
€ 131,69 Buc. (cu TVA)
1
€ 110,66
€ 110,66 Buc. (fara TVA)
€ 131,69
€ 131,69 Buc. (cu TVA)
1
Informatii despre stoc temporar indisponibile
Incercati din nou mai tarziu
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 110,66 |
| 5+ | € 105,13 |
