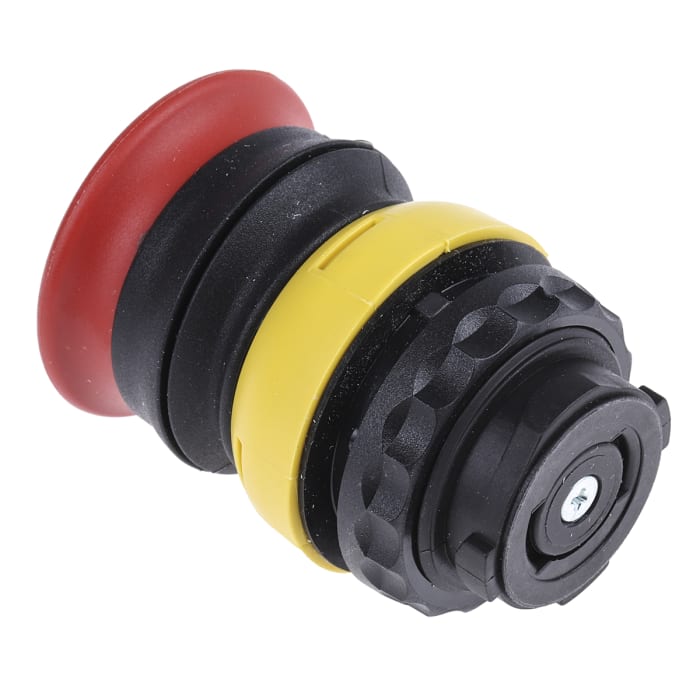

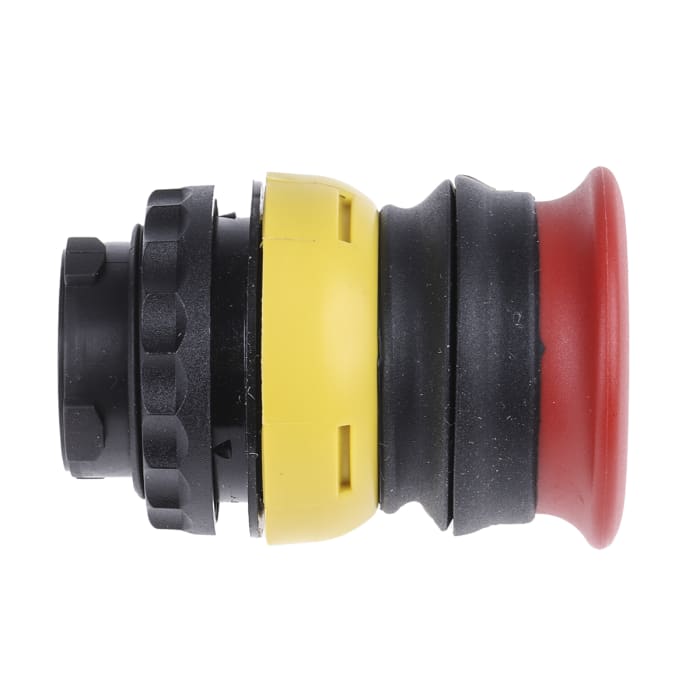

Bartec ComEx Series Momentary Emergency Stop Push Button, 30 mm Cutout, IP67, IP66
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
BartecProduct Type
Emergency Stop Push Button
Cutout Diameter
30mm
Push Button Actuation
Momentary
Housing Material
Thermoplastic
Series
ComEx
Protectie IP
IP67, IP66
Culoare
Red, Green, Blue, Yellow, White
Tip terminal
Screw
Head Style
Mushroom Push Button
Diametru cap
30mm
Hazardous Area Certification
ATEX
Standards/Approvals
DIN EN 60204-1: 2007, DIN EN 60947-5-1: 2005, CML 13 ATEX 3010 U, EN IEC 60079-0, IECEx CML 14.0005 U
Push Button Material
Thermoplastic
Tara de origine
Germany
Detalii produs
Switch Actuators
Hazardous Area Actuators & Contact Blocks
Panel mounting, with a wide range of switch contact arrangements and elements including; selector switches, key switches, standard pushbuttons and an emergency stop pushbutton. The actuators and lens units require a 30.5mm mounting hole. Ingress protection is to IP66 and they are component-approved in their own right. Switch and lamp modules include three metres of encapsulated cable. Switch modules include a wipe clean action and are rated up to 230Vac/16A (circuit type AC-12). The N/C contact has a positive break action.,The electronic circuitry of each lamp module self configures to allow the lamps to be used over a wide range of ac and dc voltages.,A simple cam arrangement on the modules provides a rapid method for the fitting of the actuators.
Informatii despre stoc temporar indisponibile
€ 59,79
€ 59,79 Buc. (fara TVA)
€ 72,35
€ 72,35 Buc. (cu TVA)
1
€ 59,79
€ 59,79 Buc. (fara TVA)
€ 72,35
€ 72,35 Buc. (cu TVA)
Informatii despre stoc temporar indisponibile
1
| Cantitate | Pret unitar |
|---|---|
| 1 - 4 | € 59,79 |
| 5 - 9 | € 57,37 |
| 10+ | € 53,83 |
