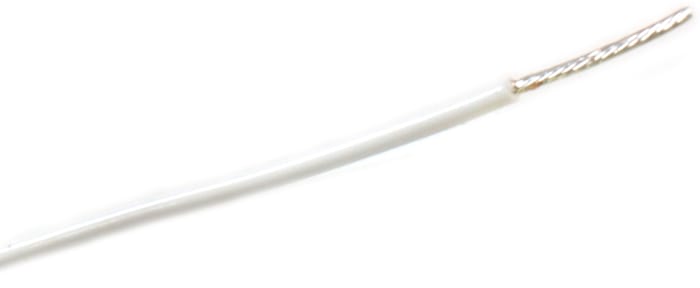

Alpha Wire Hook-up Wire TEFLON Series White 0.62 mm² Hook Up Wire, 20 AWG, 19/0.20 mm, 30m, PTFE Insulation, 5856 WH005

Name: Alpha Wire Hook-up Wire TEFLON Series White 0.62 mm² Hook Up Wire, 20 AWG, 19/0.20 mm, 30m, PTFE Insulation, 5856 WH005
Brand: Alpha Wire
SKU: 1771179
Availability: LimitedAvailability

Nr. stoc RS: 177-1179Producator: Alpha WireCod de producator: 5856 WH005Nr. articol Distrelec: 30072888

Vezi toate produsele din Conectare cablu

Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)

Specificatii

Marca

Alpha Wire

Cross Sectional Area

0.62 mm²

Culoare invelis

White

American Wire Gauge

20 AWG

Core Strands

19/0.20 mm

Lungime

30m

Insulation material

PTFE

Diametru exterior

1.47mm

Tensiune

600 V

Frecventa minima de auto-rezonanta

-60°C

Temperatura maxima de lucru

+200°C

Conductor Material

Silver Plated Copper

Wire Style

UL1213

Standarde

MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1

Serie

Hook-up Wire TEFLON

Shield Type

Unshielded

Insulation Wall Thickness

0.3mm

Number of Strands

Dimensiune

0.2 mm
