Omron G3RV-SR Series Solid State Relay, 2 A Load, DIN Rail Mount, 264 V ac Load, 110 V ac Control
Documente tehnice
Specificatii
Marca
OmronMaximum Load Current
2 A
Timp montare
DIN Rail
Maximum Load Voltage
264 V ac
Minimum Load Voltage
75 V ac
Maximum Control Voltage
110 V ac
Switching Type
AC
Control Voltage Range
Maximum of 110 V ac
Minimum Load Current
0.1 A
Numar poli
1
Configurare contact
SPST
Tip terminal
Push In
Output Device
Triac
Relay Type
Solid State Relay
Maximum Turn On Time
3 ms
Serie
G3RV-SR
Load Voltage Range
75 → 264V ac
Dimensiuni
6.2 x 78 x 90mm
Inaltime
90mm
Off State Leakage Current
5 mA
Lungime
6.2mm
Temperatura de lucru
-30 → +55°C
PRICED TO CLEAR
Yes
Caracteristici speciale
High-Speed Opening and Closing SSR, Lower Profile than Conventional Products
Standarde
CE, CULus, TUV Certification
Adancime
78mm
Tara de origine
Japan
Detalii produs

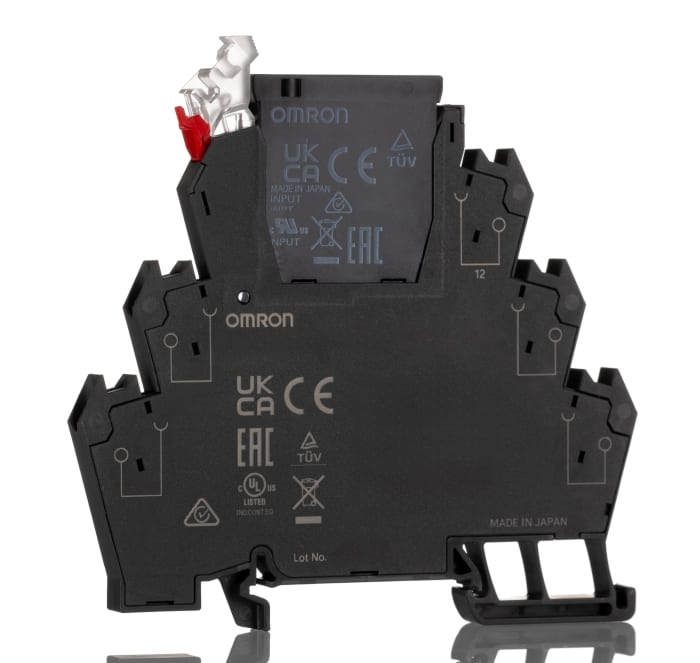

G3RV-SR Slim I/O Solid State Relay
Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.
