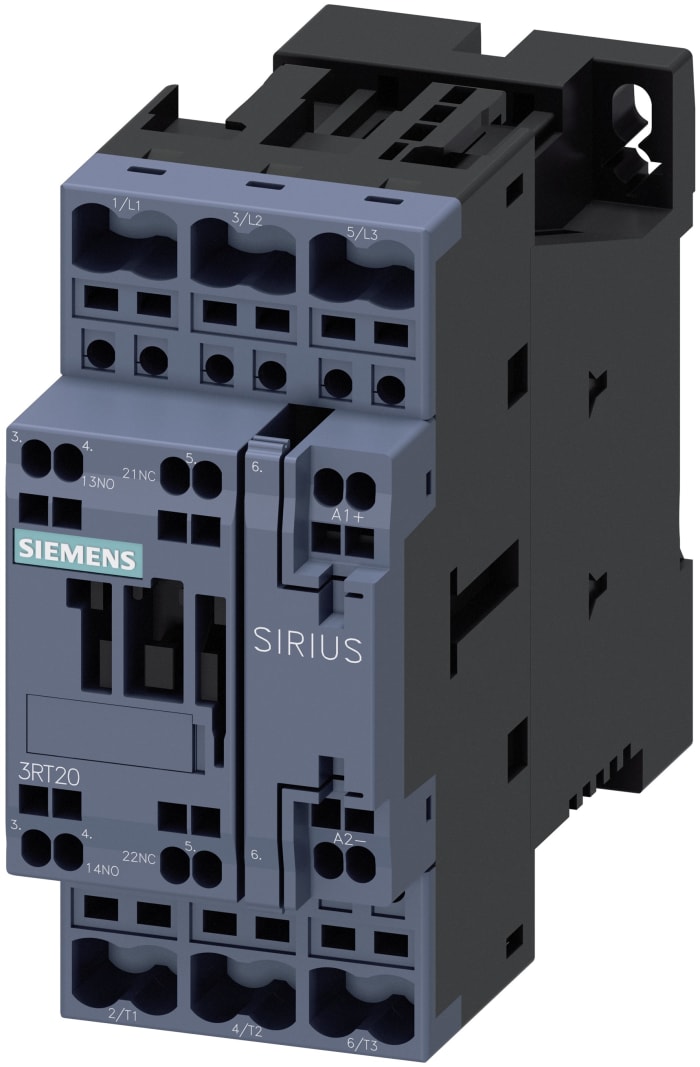

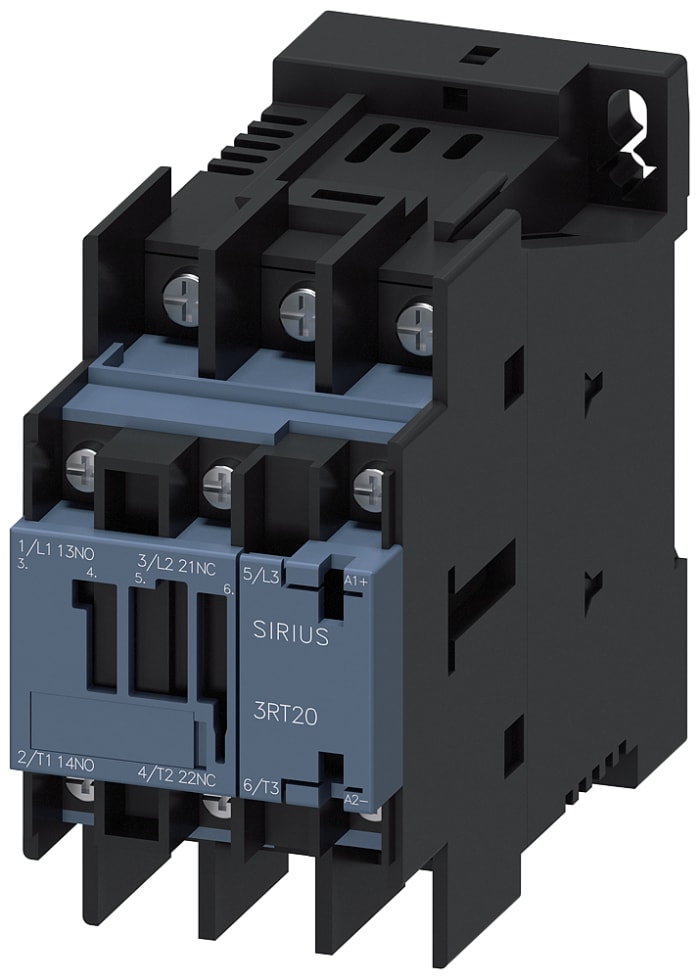

Siemens SIRIUS 3RT Size S0, 3RT2 Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac
Documente tehnice
Specificatii
Marca
SiemensCoil Voltage
24 V dc
Numar poli
3
Contact Voltage Rating
400 V ac
Contact Current Rating
9 A
Raza actiune
SIRIUS 3RT
Serie
Size S0, 3RT2
Putere
4 kW
Normal State Configuration
3NO
Number Of Auxiliary Contacts
2
Auxiliary Contact Configuration
1NO + 1NC
Tip terminal
Screw
Lungime
85mm
Latime
45mm
Adancime
102mm
Better World Product (Afla mai multe)
Yes
Better World Claim
Low carbon manufacture
Temperatura minima de lucru
-25°C
Temperatura maxima de lucru
+60°C
Load Current
7.6 A, 9 A
Montare
Rail, Surface Mount
Control Voltage
24 V
Tara de origine
Germany
Detalii produs
Contactors – 3RT2 Range
The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW
Approvals
CE, UL, CSA, CCC
€ 90,10
€ 90,10 Buc. (fara TVA)
€ 107,22
€ 107,22 Buc. (cu TVA)
1
€ 90,10
€ 90,10 Buc. (fara TVA)
€ 107,22
€ 107,22 Buc. (cu TVA)
1
Informatii indisponibile despre stoc
Incercati din nou mai tarziu
