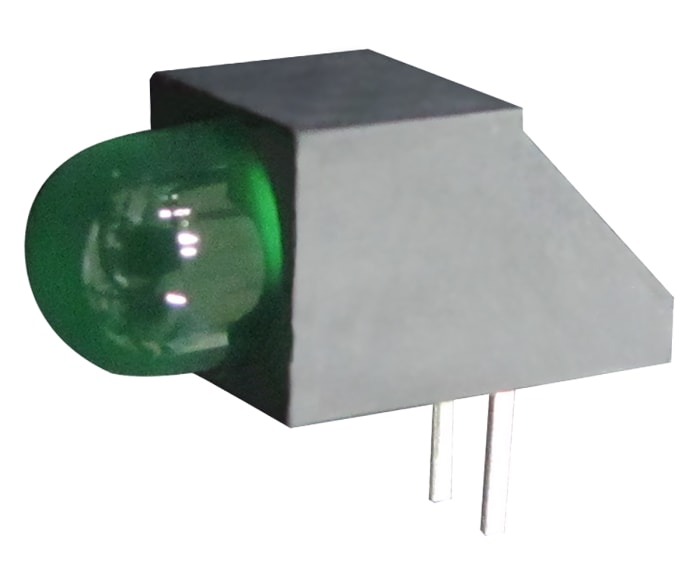

Dialight 550-2207F, Green Right Angle PCB LED Indicator 5mm (T-1 3/4), Through Hole
Documente tehnice (Imaginile sunt cu titlu informativ. Va rugam sa consultati specificatiile tehnice.)
Specificatii
Marca
DialightLED Colours
Green
Number of LEDs
1
Timp montare
Through Hole
Number of Pins
2
Unghi de vedere
65 °
Dominant Wavelength
563 nm
LED Orientation
Right Angle
Dimensiuni
13.85 x 6.22 x 6.22mm
Lungime
13.85mm
Latime
6.22mm
Inaltime
6.22mm
LED Size
5mm (T-1 3/4)
Configuration
Single
Forward Current
25mA
Culoare lentila
Green
Lens Finish
Diffused, Tinted
Intensity
10mcd
Detalii produs
Dialight 550-xx07 Series LED CBI® Circuit Board Indicators
The 550-xx07, from Dialight, are LED circuit board indicators from their CBI® family. They contain one 5mm through-hole LED in a black plastic housing with a sloped back. Their black housings enable a high contrast and housing standoffs help with the cleaning of the PCB. They are available in general purpose, integral resistor, low current, high efficiency, bi-colour and super bright LED options.
PCB LED Indicators, Dialight
€ 17,80
€ 0,89 Buc. (Intr-un pachet de 20) (fara TVA)
€ 21,54
€ 1,077 Buc. (Intr-un pachet de 20) (cu TVA)
20
€ 17,80
€ 0,89 Buc. (Intr-un pachet de 20) (fara TVA)
€ 21,54
€ 1,077 Buc. (Intr-un pachet de 20) (cu TVA)
Informatii despre stoc temporar indisponibile
20
Informatii despre stoc temporar indisponibile
| Cantitate | Pret unitar | Per Pachet |
|---|---|---|
| 20 - 100 | € 0,89 | € 17,80 |
| 120 - 220 | € 0,58 | € 11,60 |
| 240 - 480 | € 0,55 | € 11,00 |
| 500 - 980 | € 0,51 | € 10,20 |
| 1000+ | € 0,45 | € 9,00 |
